Introduction
This vignette covers the third step in the xcms metabolomics workflow: peak correspondence (also called peak grouping or alignment). After detecting peaks in individual samples, these functions help you:
- Optimize parameters for grouping peaks across samples
- Visualize how peaks will be grouped into features
- Compare multiple extracted ion chromatograms (EICs)
- Assess correspondence quality
xcms Workflow Context
┌─────────────────────────────────────┐
│ 1. Raw Data Visualization │
│ 2. Peak Detection │
├─────────────────────────────────────┤
│ 3. PEAK CORRESPONDENCE ← YOU ARE HERE
├─────────────────────────────────────┤
│ 4. Retention Time Alignment │
│ 5. Feature Grouping │
└─────────────────────────────────────┘What is Peak Correspondence?
Peak correspondence groups chromatographic peaks detected across different samples that represent the same compound. The goal is to create features - groups of peaks with similar m/z and retention time that likely derive from the same molecule.
Functions Covered
| Function | Purpose | What it Overlays |
|---|---|---|
gplotChromPeakDensity() |
Optimize correspondence parameters | Density of peaks across samples |
gplotChromatogramsOverlay() |
Compare different EICs within sample | DIFFERENT m/z, SAME sample |
gplot(XChromatogram) |
Compare same EIC across samples | SAME m/z, DIFFERENT samples |
Setup
Data Preparation
We’ll use pre-processed test data from xcms for faster execution:
# Load pre-processed data with detected peaks
xdata <- loadXcmsData("faahko_sub2")
# Add sample group metadata (the files are all KO/KO/WT from faahKO)
MsExperiment::sampleData(xdata)$sample_group <- c("KO", "KO", "WT")
# Check data
cat("Samples:", length(fileNames(xdata)), "\n")
#> Samples: 3
cat("Total peaks detected:", nrow(chromPeaks(xdata)), "\n")
#> Total peaks detected: 248Part 1: Peak Density Visualization
gplotChromPeakDensity(): Parameter Optimization
The gplotChromPeakDensity() function helps optimize peak density correspondence parameters by visualizing how peaks would be grouped.
Basic Usage
# Extract chromatogram for visualization
chr <- chromatogram(xdata, mz = c(305.05, 305.15))
# Create parameter object
prm <- PeakDensityParam(sampleGroups = rep(1, 3), bw = 30)
# Visualize peak density
gplotChromPeakDensity(chr, param = prm)
The plot shows:
- Upper panel: Overlaid chromatograms from all samples
- Lower panel: Peak positions as points with density curve and feature grouping regions (grey rectangles)

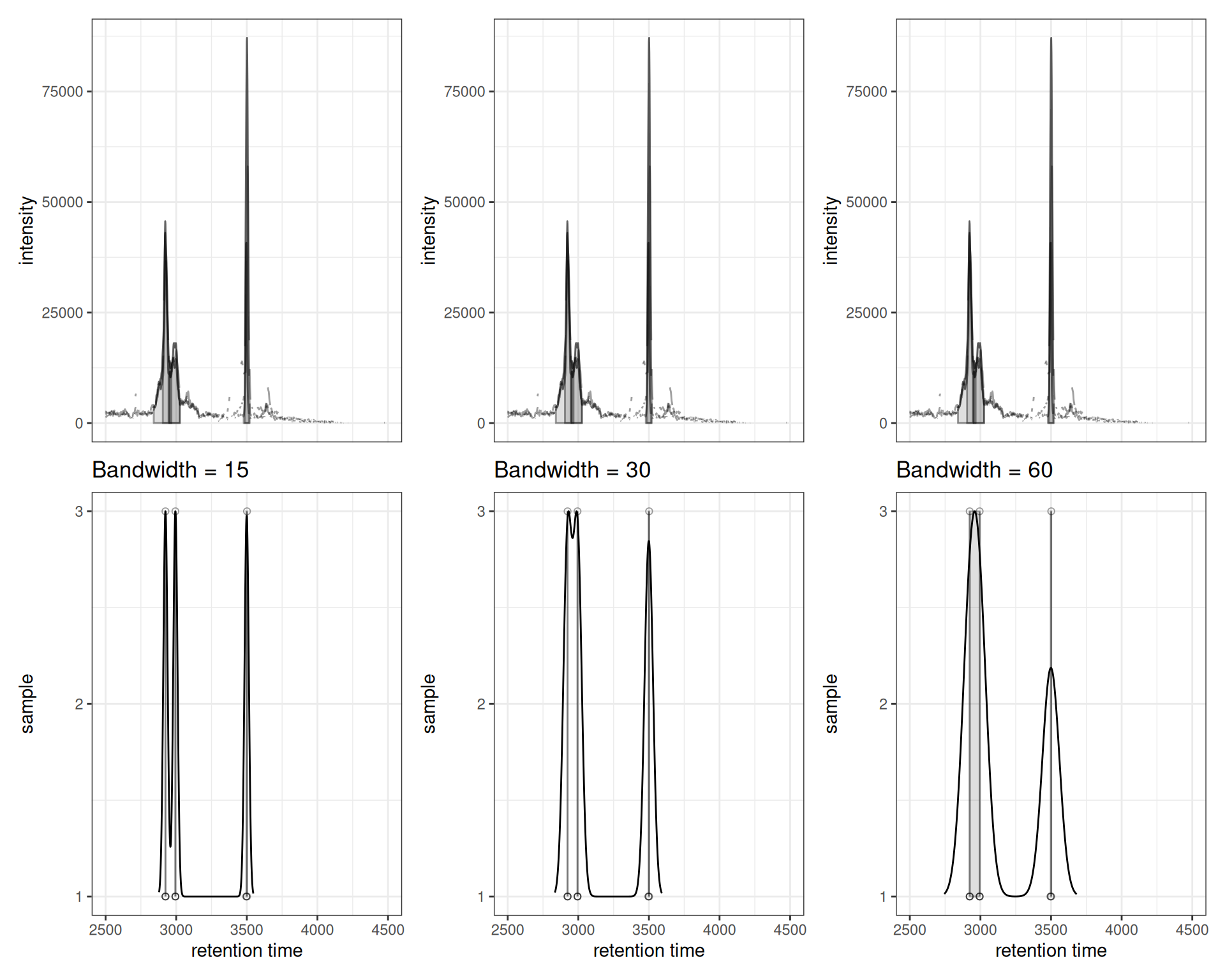

Optimizing Bandwidth Parameter
The bandwidth (bw) parameter controls the smoothing of the density estimate. Larger values group more distant peaks together:
prm_small <- PeakDensityParam(sampleGroups = rep(1, 3), bw = 15)
prm_medium <- PeakDensityParam(sampleGroups = rep(1, 3), bw = 30)
prm_large <- PeakDensityParam(sampleGroups = rep(1, 3), bw = 60)
p1 <- gplotChromPeakDensity(chr, param = prm_small) +
ggtitle("Bandwidth = 15")
p2 <- gplotChromPeakDensity(chr, param = prm_medium) +
ggtitle("Bandwidth = 30")
p3 <- gplotChromPeakDensity(chr, param = prm_large) +
ggtitle("Bandwidth = 60")
p1 | p2 | p3
Interpretation:
- Small bandwidth (15): More sensitive, creates more feature groups, may split real features
- Medium bandwidth (30): Balanced approach
- Large bandwidth (60): Less sensitive, merges nearby peaks, may combine distinct features

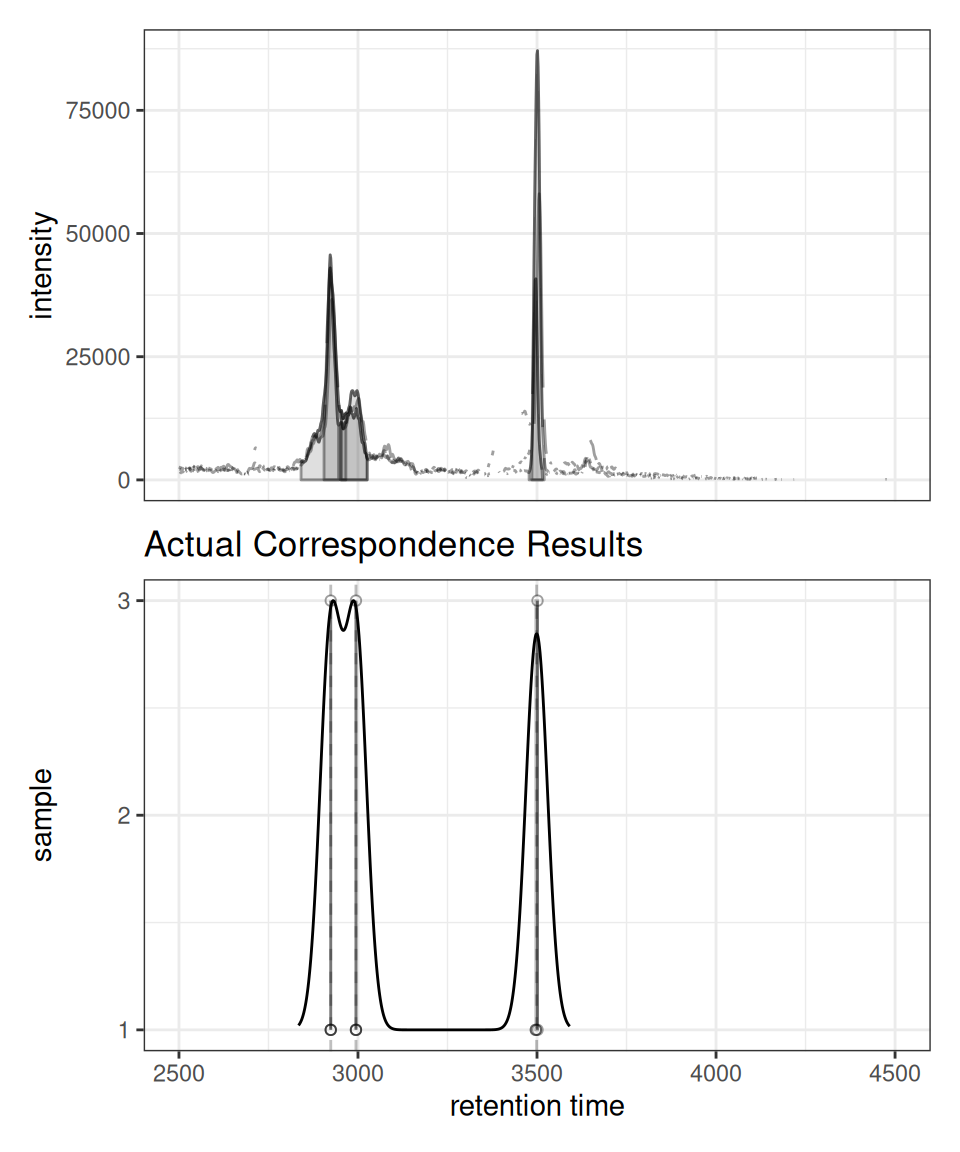

Showing Actual Correspondence Results
After running correspondence analysis, you can visualize the actual feature grouping by setting simulate = FALSE:
# Perform correspondence
xdata_grouped <- groupChromPeaks(xdata, param = PeakDensityParam(
sampleGroups = rep(1, 3),
minFraction = 0.4,
bw = 30
))
# Extract chromatogram again (now with correspondence info)
chr_grouped <- chromatogram(xdata_grouped, mz = c(305.05, 305.15))
# Plot actual correspondence results
gplotChromPeakDensity(chr_grouped, simulate = FALSE) +
ggtitle("Actual Correspondence Results")
Feature Annotations
When
simulate = FALSE, the plot shows the actual feature groupings determined by the correspondence algorithm. Vertical dashed lines indicate the median retention time for each detected feature across samples.
Interactive Exploration
p <- gplotChromPeakDensity(chr, param = prm)
ggplotly(p)Part 2: Chromatogram Overlay Visualization
gplotChromatogramsOverlay(): Comparing Multiple EICs
The gplotChromatogramsOverlay() function overlays different EICs (rows) from the same sample (column) in one plot.
Understanding the Difference
Key Concept
gplot(XChromatogram): Overlays the SAME m/z range across DIFFERENT samplesgplotChromatogramsOverlay(): Overlays DIFFERENT m/z ranges within the SAME sample
Single Sample: Multiple EICs Overlaid
# Extract multiple EICs from ONE sample
chr_multi <- chromatogram(xdata[1,], mz = rbind(
c(305.05, 305.15),
c(344.0, 344.2)
))
gplotChromatogramsOverlay(chr_multi, main = "Sample 1")

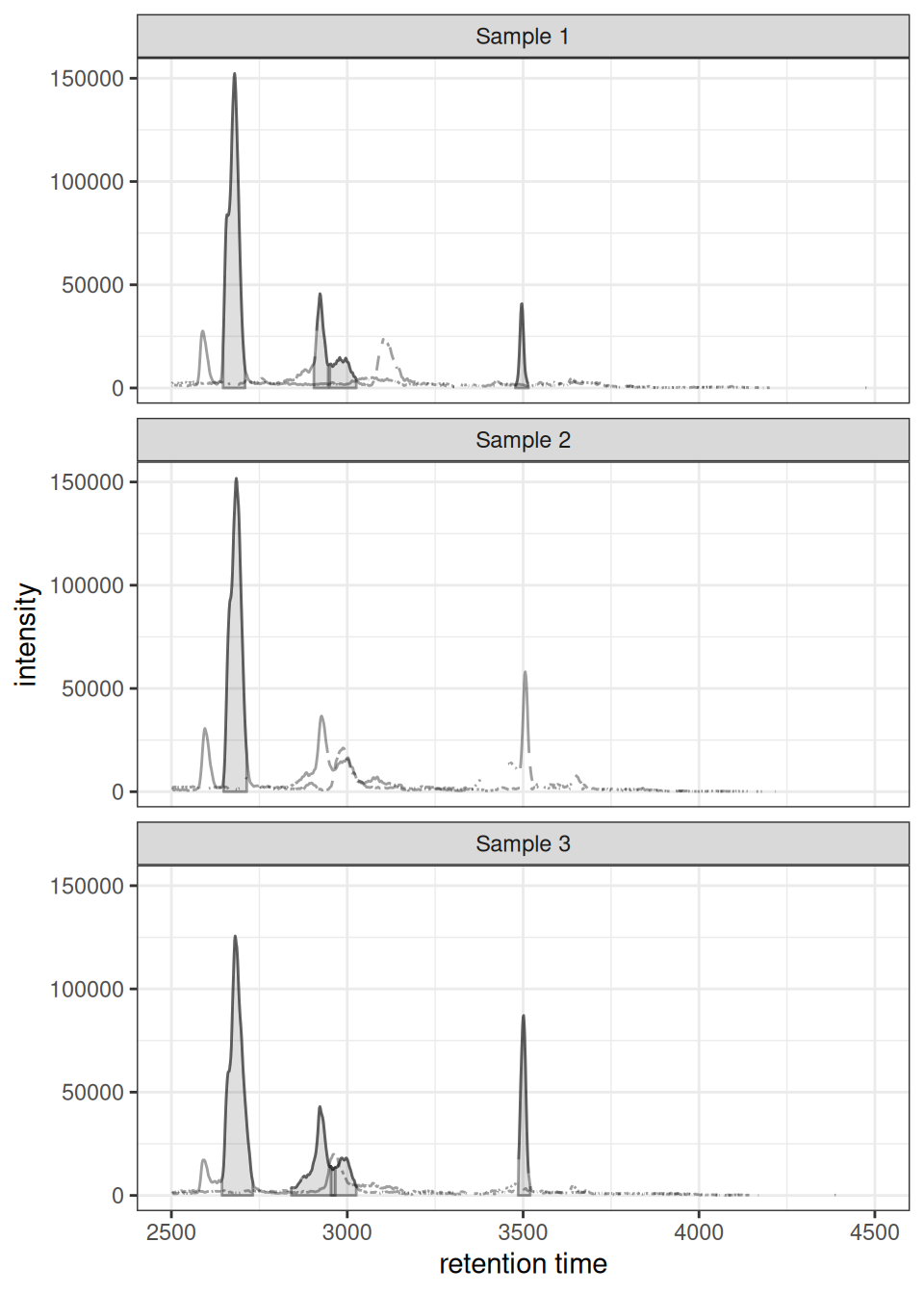

Multiple Samples: Faceted Layout
When you have multiple samples, gplotChromatogramsOverlay() creates a faceted plot with one panel per sample:
# Extract multiple EICs from ALL samples
chr_all <- chromatogram(xdata, mz = rbind(
c(305.05, 305.15),
c(344.0, 344.2)
))
gplotChromatogramsOverlay(chr_all,
main = c("Sample 1", "Sample 2", "Sample 3"))
Color by Sample Metadata
When your XcmsExperiment has sample metadata (e.g., sample groups), this is automatically carried over to pData() of the extracted chromatograms. You can color each sample by a metadata column by passing the column name as a string to col:
# Add sample metadata (if not already present)
chr_one_eic <- chromatogram(xdata, mz = c(305.05, 305.15))
# Check available metadata columns
Biobase::pData(chr_one_eic)
#> sample_index spectraOrigin
#> 1 1 /usr/local/lib/R/host-site-library/faahKO/cdf/KO/ko15.CDF
#> 2 2 /usr/local/lib/R/host-site-library/faahKO/cdf/KO/ko16.CDF
#> 3 3 /usr/local/lib/R/host-site-library/faahKO/cdf/KO/ko18.CDF
#> sample_group
#> 1 KO
#> 2 KO
#> 3 WT

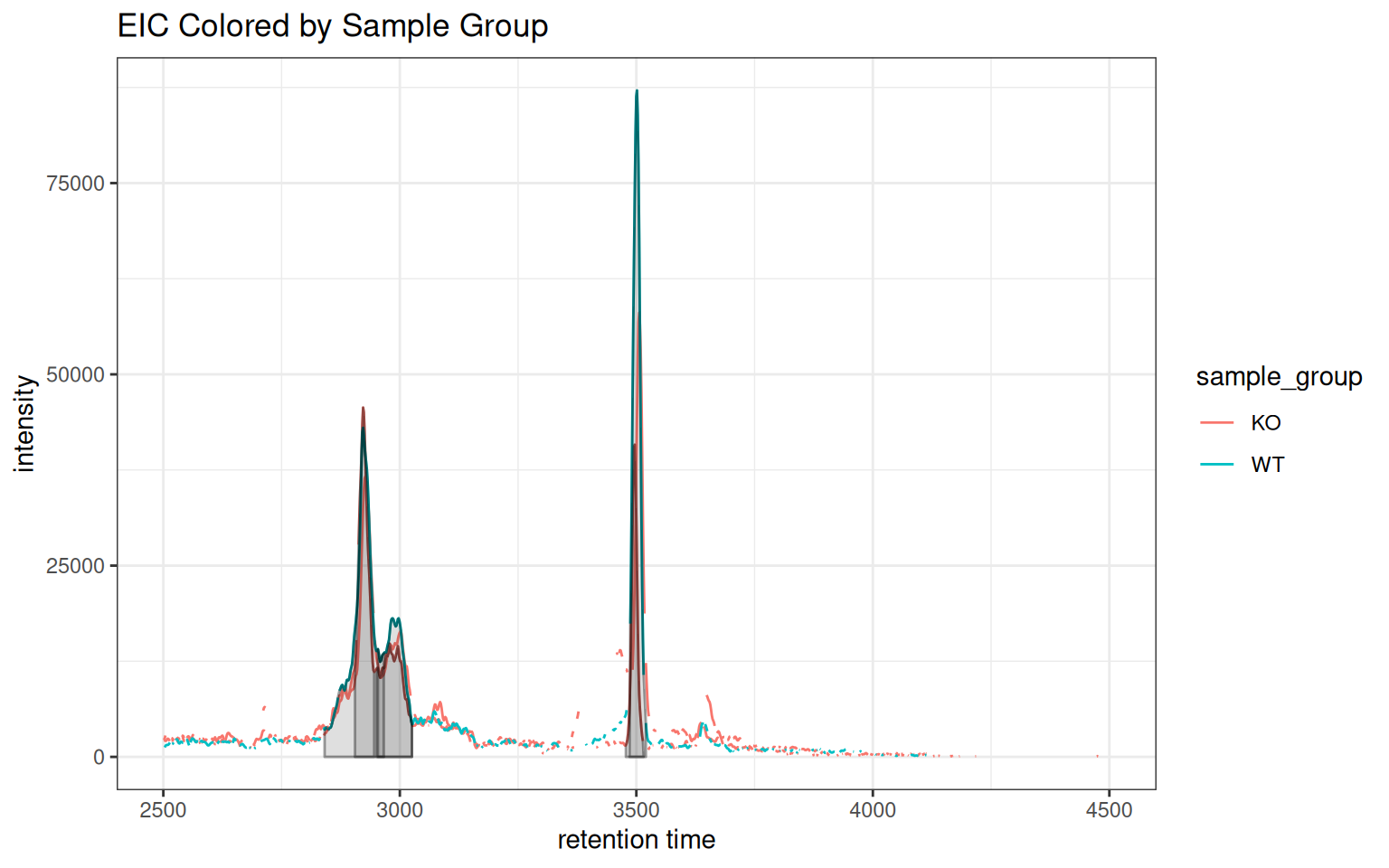

# Color lines by sample_group - just pass the column name as a string
gplot(chr_one_eic, col = "sample_group") +
ggtitle("EIC Colored by Sample Group")

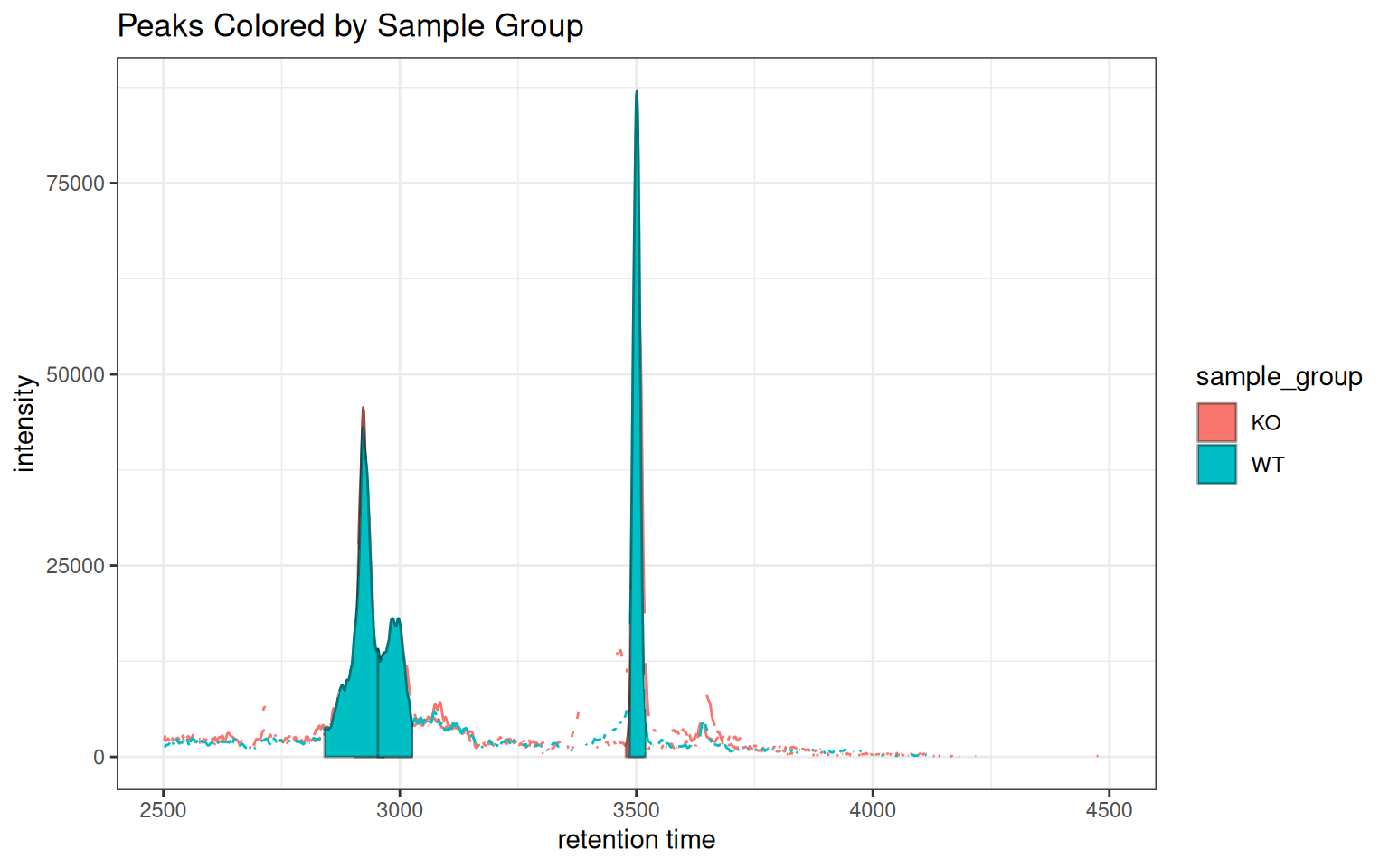

The same works for peak annotations — peakCol and peakBg also accept column names:
# Color both lines and peak fills by sample group
gplot(chr_one_eic, col = "sample_group",
peakBg = "sample_group", peakType = "polygon") +
ggtitle("Peaks Colored by Sample Group")
How it works
When
col,peakCol, orpeakBgmatch a column name inBiobase::pData(x), the value is used as a ggplot2 aesthetic mapping. Otherwise it is treated as a static color string (e.g.col = "red"). This lets you switch between static and data-driven coloring without changing the function call pattern.
Interactive Tooltips with Sample Metadata
Use include_columns to add sample metadata to plotly tooltips. Pass TRUE for all columns, or a character vector to select specific ones:
p <- gplot(chr_one_eic, col = "sample_group",
include_columns = c("sample_group", "sample_index"))
ggplotly(p, tooltip = "text")Hovering over a chromatogram line shows the sample metadata. Peak annotations also include their peak ID in the tooltip.

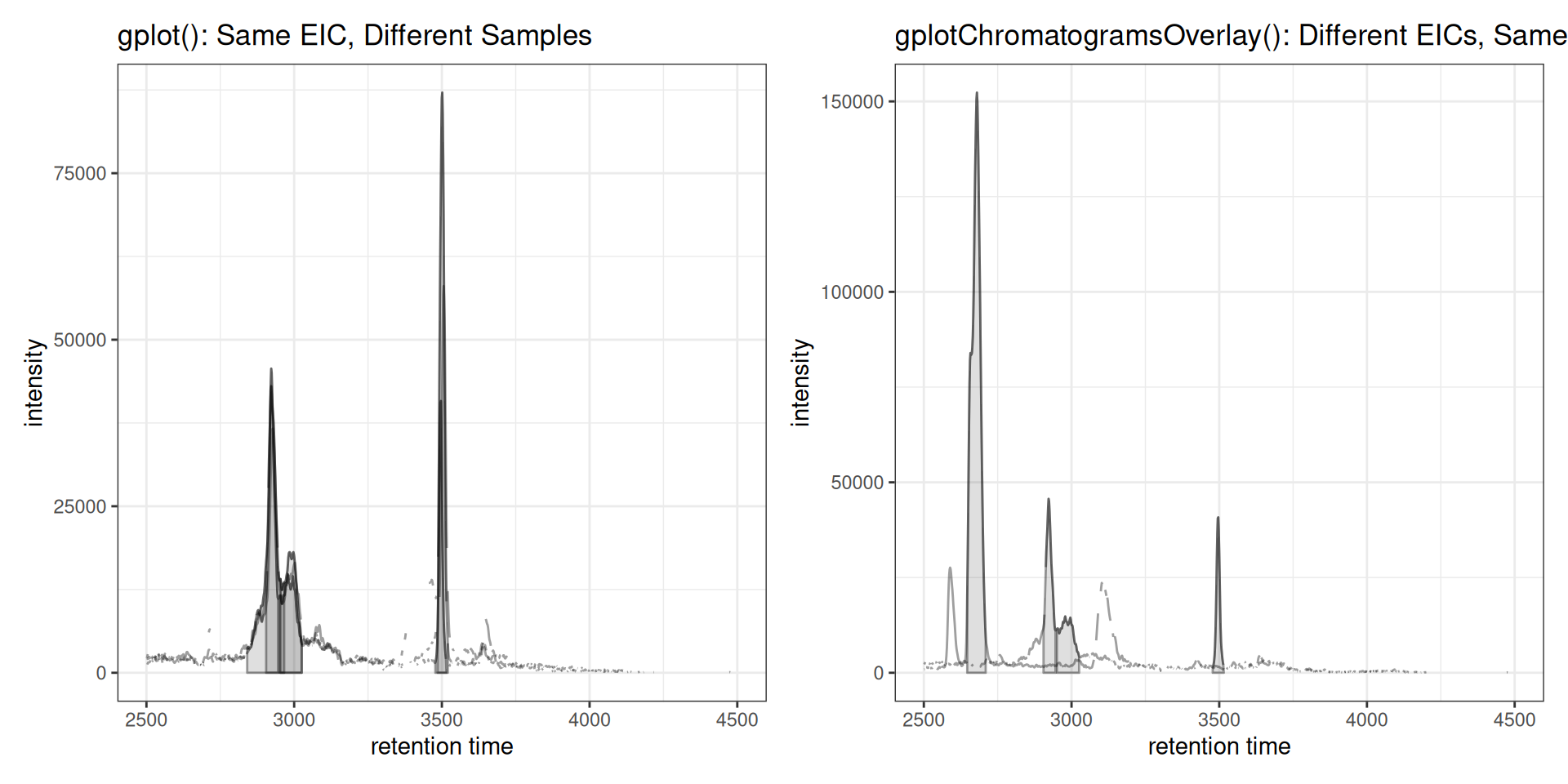

Contrast: gplot() vs gplotChromatogramsOverlay()
Here’s a direct comparison showing the key difference:
# LEFT: gplot() - same EIC across different samples
p_left <- gplot(chr_one_eic) +
ggtitle("gplot(): Same EIC, Different Samples")
# RIGHT: gplotChromatogramsOverlay() - different EICs within one sample
chr_multi_eic <- chromatogram(xdata[1,], mz = rbind(
c(305.05, 305.15),
c(344.0, 344.2)
))
p_right <- gplotChromatogramsOverlay(chr_multi_eic) +
ggtitle("gplotChromatogramsOverlay(): Different EICs, Same Sample")
p_left | p_right

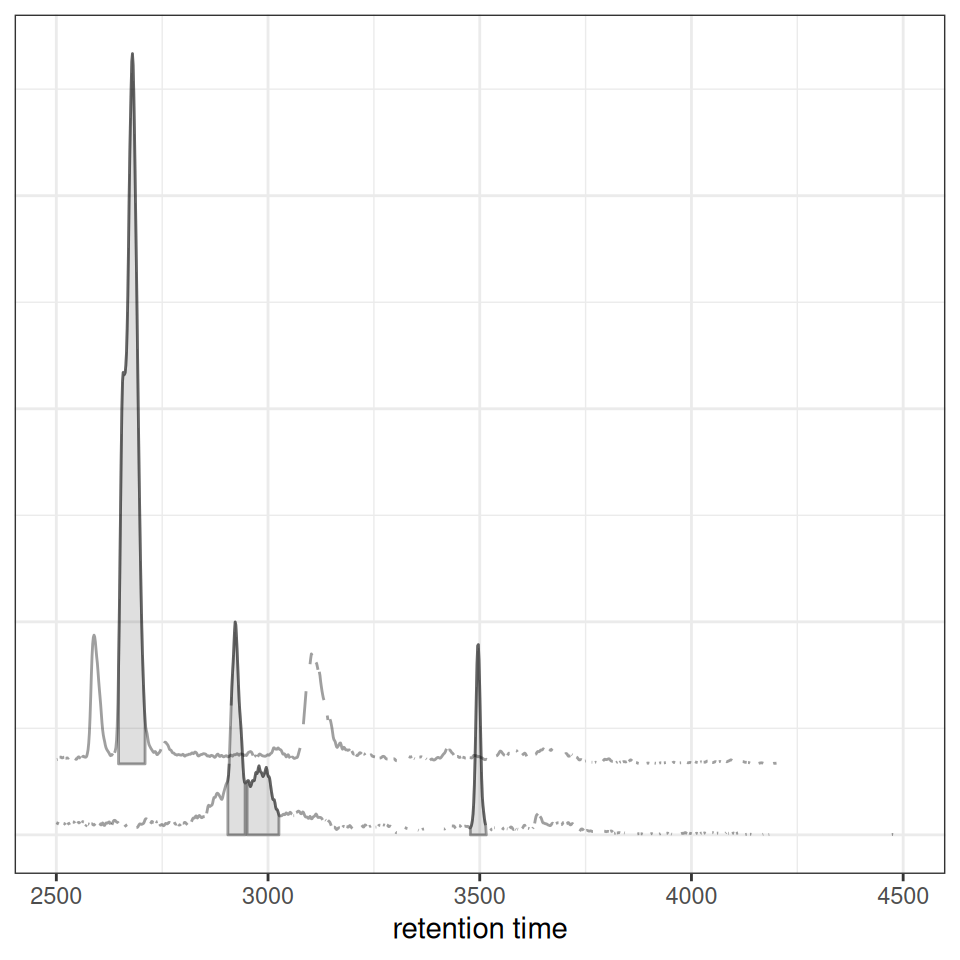

Stacked Visualization
For better visual separation, chromatograms can be vertically offset:
gplotChromatogramsOverlay(chr_multi, stacked = 0.1, main = "Sample 1")

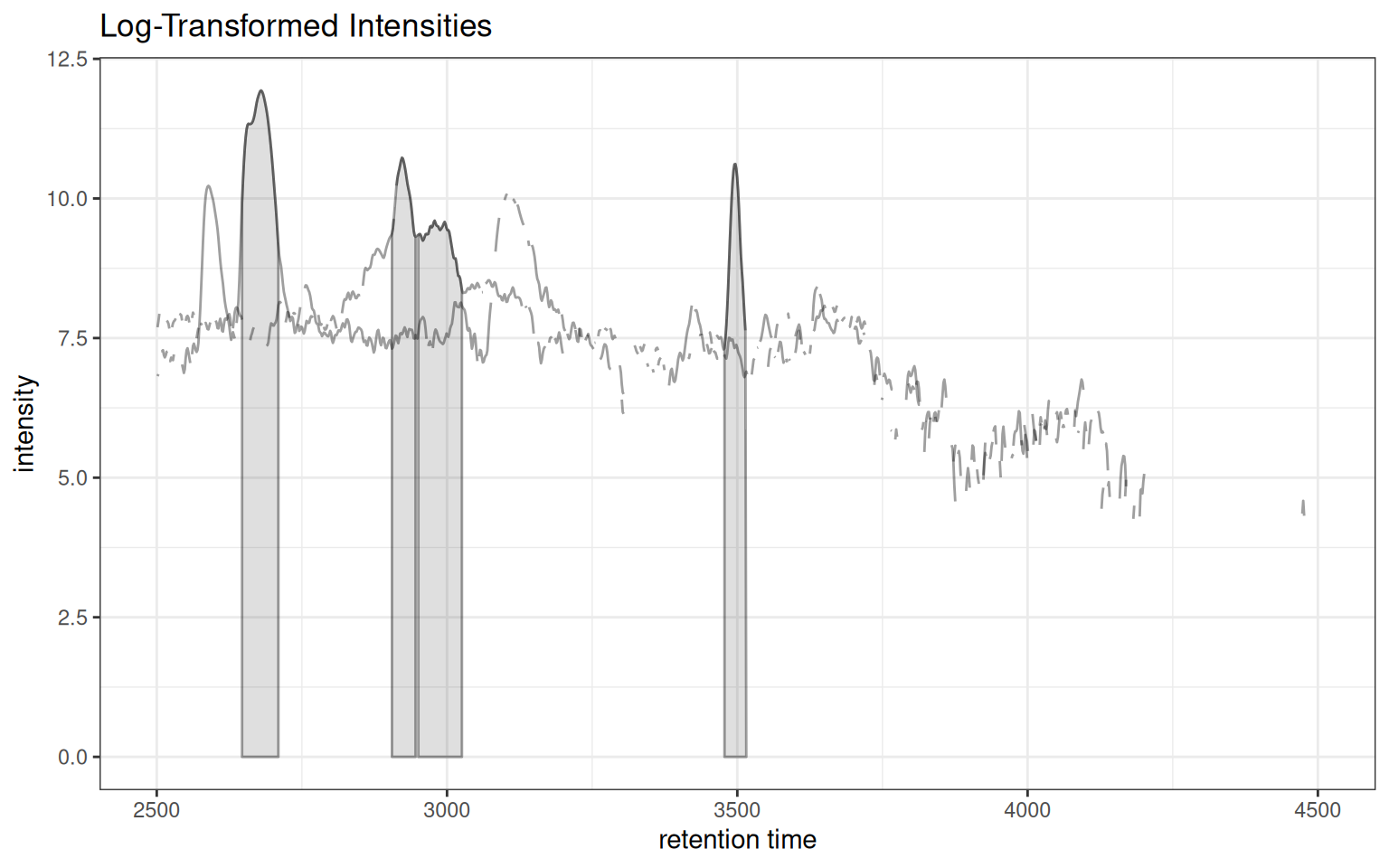

Intensity Transformation
Apply transformations for better visualization of low-intensity features:
gplotChromatogramsOverlay(chr_multi, transform = log1p, main = "Sample 1") +
ggtitle("Log-Transformed Intensities")

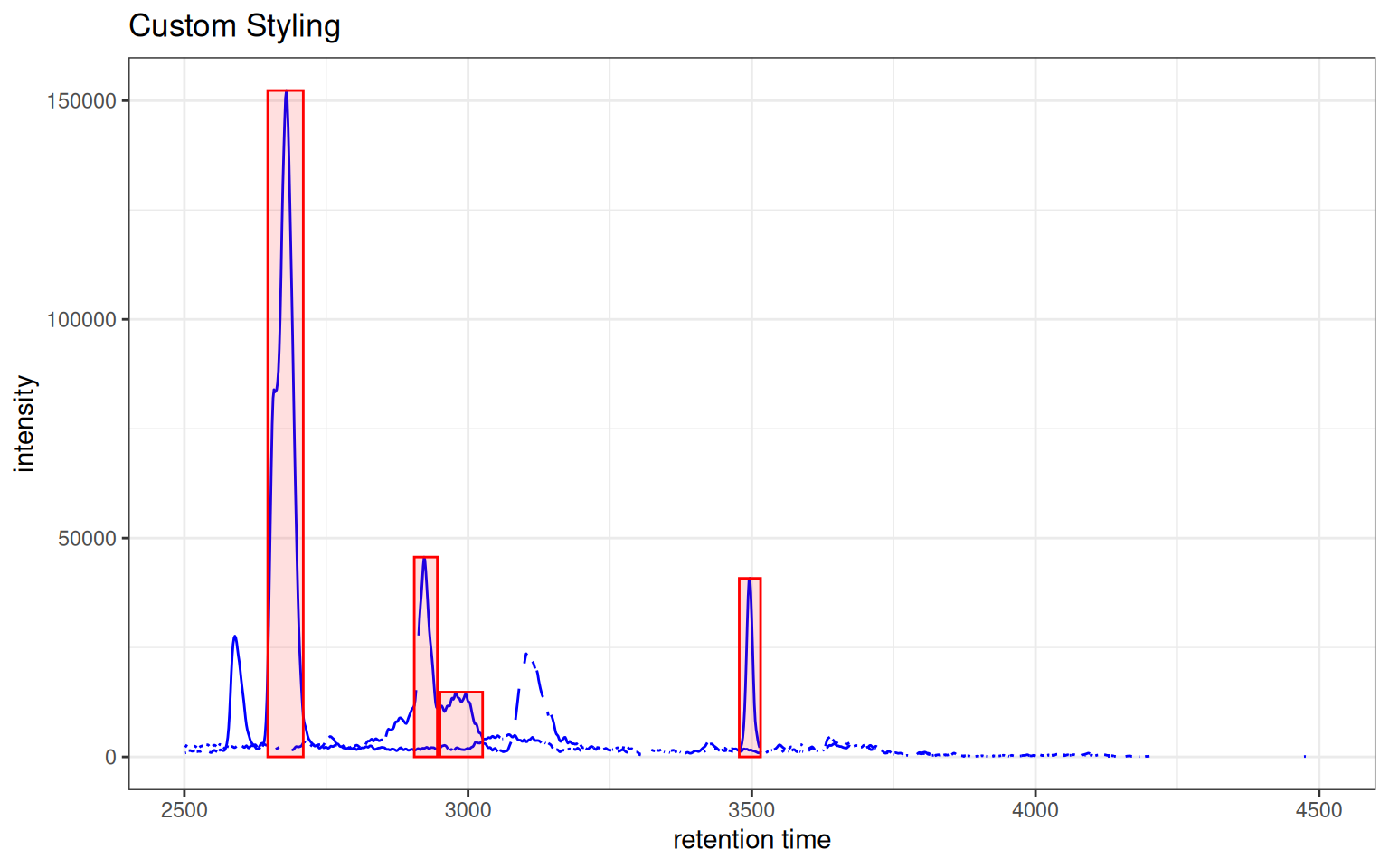

Custom Colors and Peak Styles
gplotChromatogramsOverlay(
chr_multi,
col = "blue",
peakCol = "red",
peakBg = "#ff000020",
peakType = "rectangle",
main = "Sample 1"
) + ggtitle("Custom Styling")

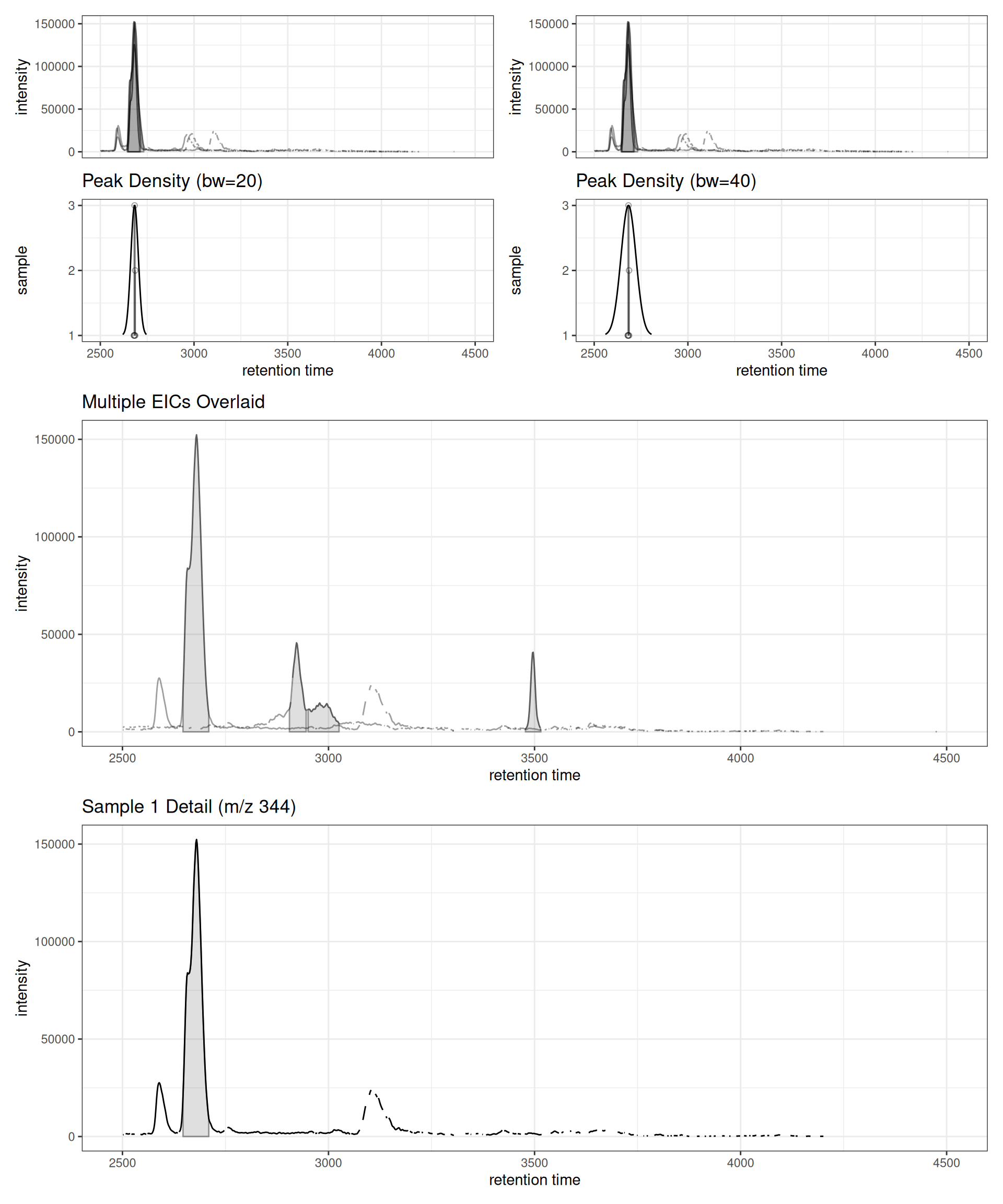

Complete Workflow Example
Here’s a complete workflow demonstrating how these functions work together for correspondence optimization:
# 1. Extract chromatogram for one m/z
chr_workflow <- chromatogram(xdata, mz = c(344.0, 344.2))
# 2. Check peak density with different parameters
prm1 <- PeakDensityParam(sampleGroups = rep(1, 3), bw = 20)
prm2 <- PeakDensityParam(sampleGroups = rep(1, 3), bw = 40)
p1 <- gplotChromPeakDensity(chr_workflow, param = prm1) +
ggtitle("Peak Density (bw=20)")
p2 <- gplotChromPeakDensity(chr_workflow, param = prm2) +
ggtitle("Peak Density (bw=40)")
# 3. Overlay multiple EICs from one sample
chr_overlay <- chromatogram(xdata[1,], mz = rbind(
c(305.05, 305.15),
c(344.0, 344.2)
))
p3 <- gplotChromatogramsOverlay(chr_overlay, main = "Sample 1") +
ggtitle("Multiple EICs Overlaid")
# 4. Individual chromatogram detail
p4 <- gplot(chr_workflow[1, 1]) +
ggtitle("Sample 1 Detail (m/z 344)")
# Combine all plots
(p1 | p2) / p3 / p4
Summary
Use Cases
-
Parameter optimization:
gplotChromPeakDensity()helps tune correspondence parameters -
Quality control:
gplotChromatogramsOverlay()reveals co-eluting compounds within samples -
Sample comparison:
gplot()shows retention time shifts and intensity variations between samples
Next Steps
After optimizing and performing peak correspondence, proceed to:
→ Step 4: Retention Time Alignment - Correct retention time shifts between samples

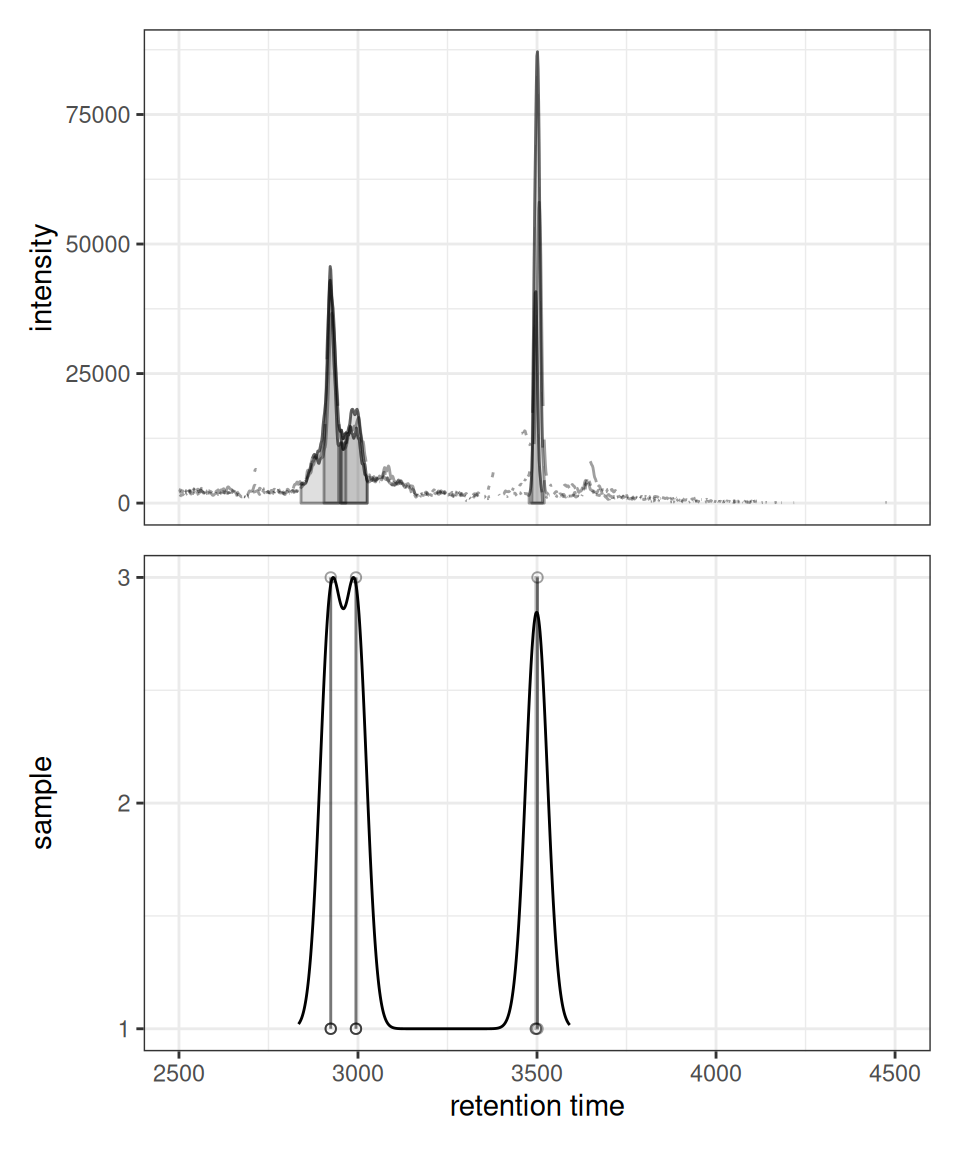

Comparison with Original xcms

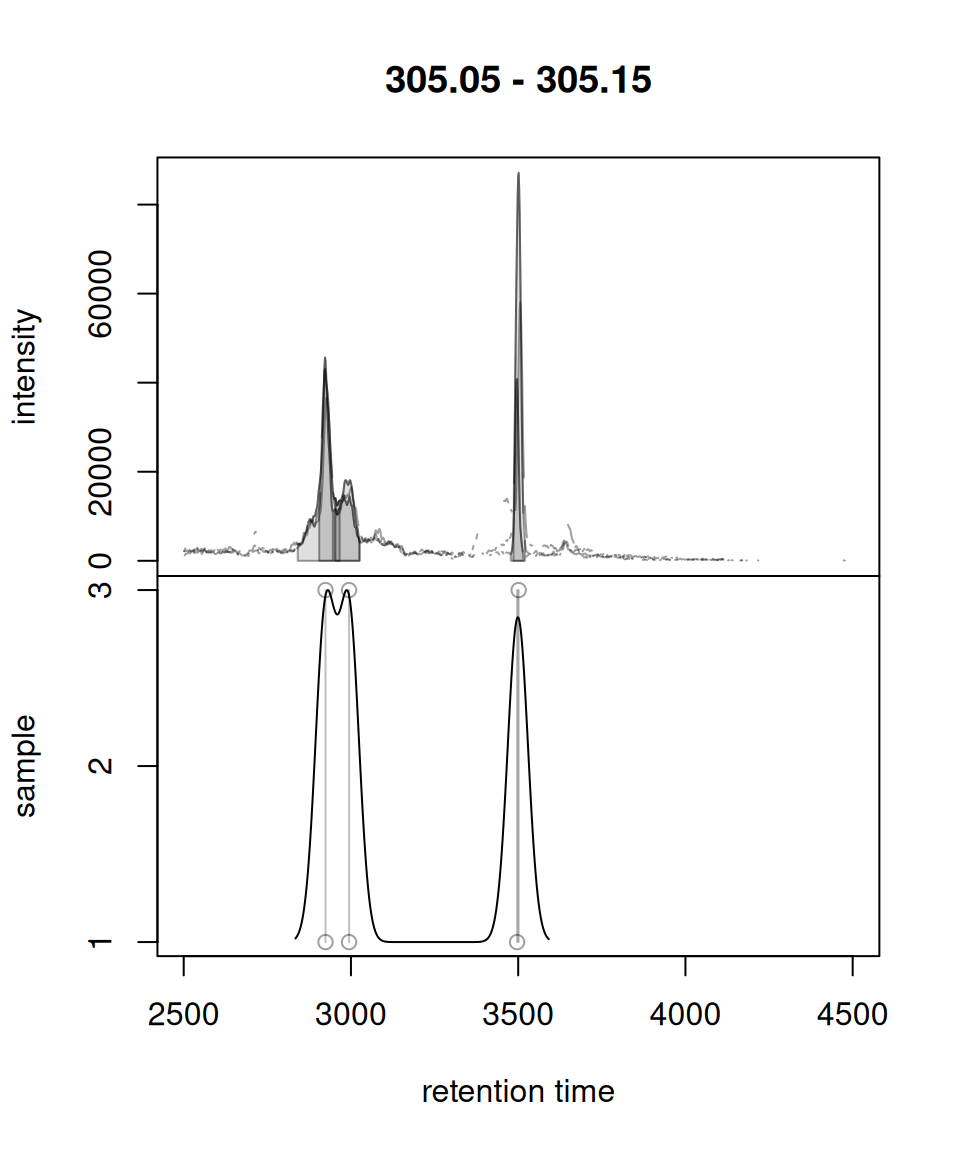

Original xcms
plotChromPeakDensity(chr, param = prm)
xcmsVis ggplot2
gplotChromPeakDensity(chr, param = prm)

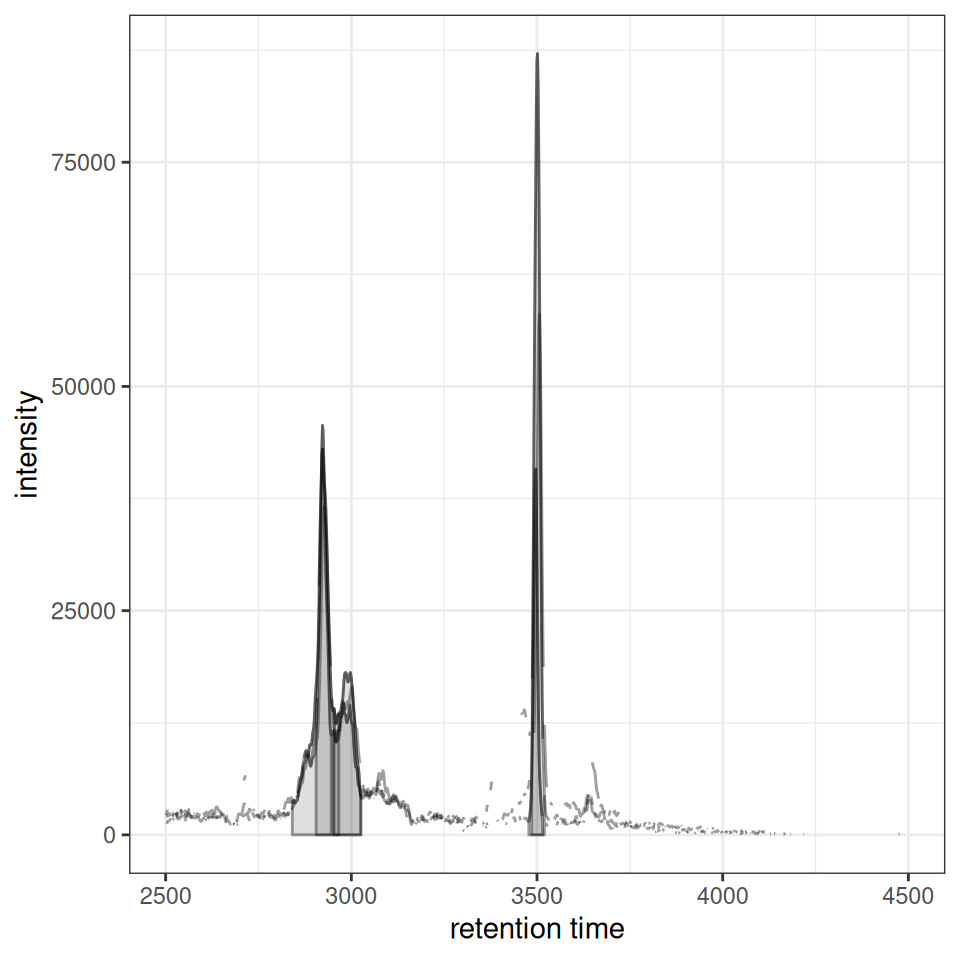

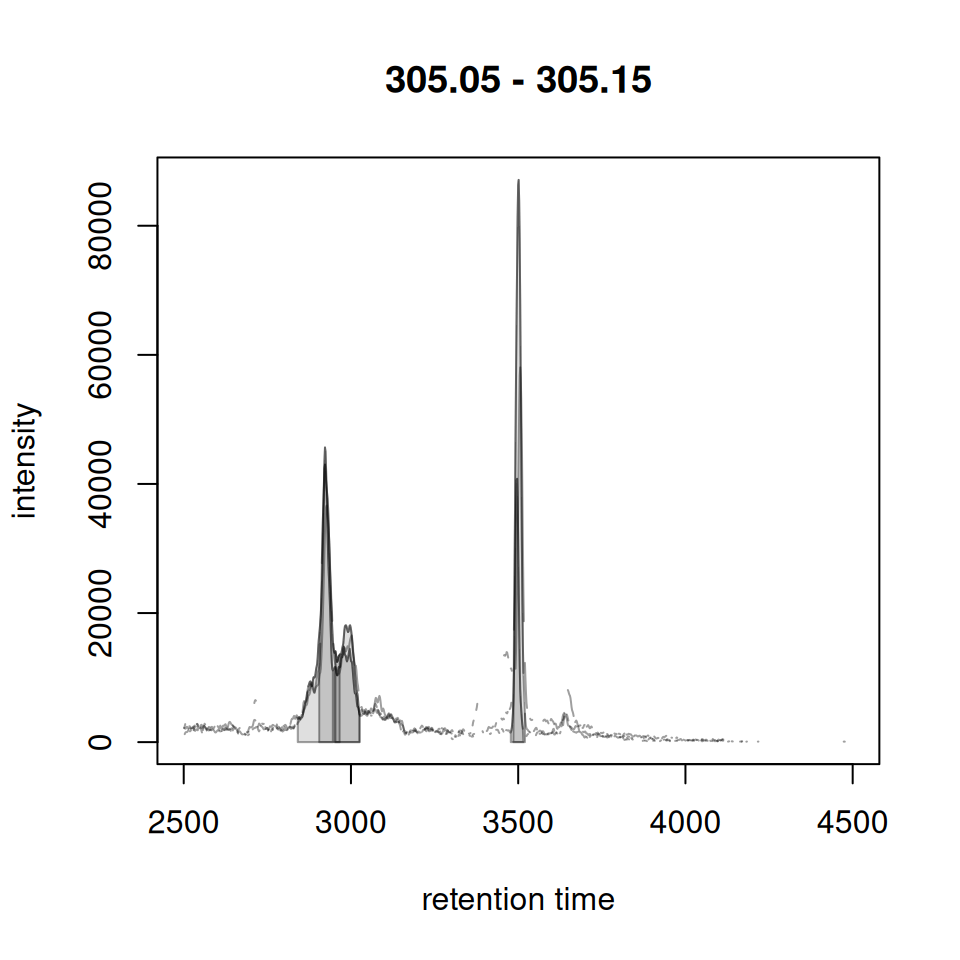

gplot() vs plot() for XChromatograms

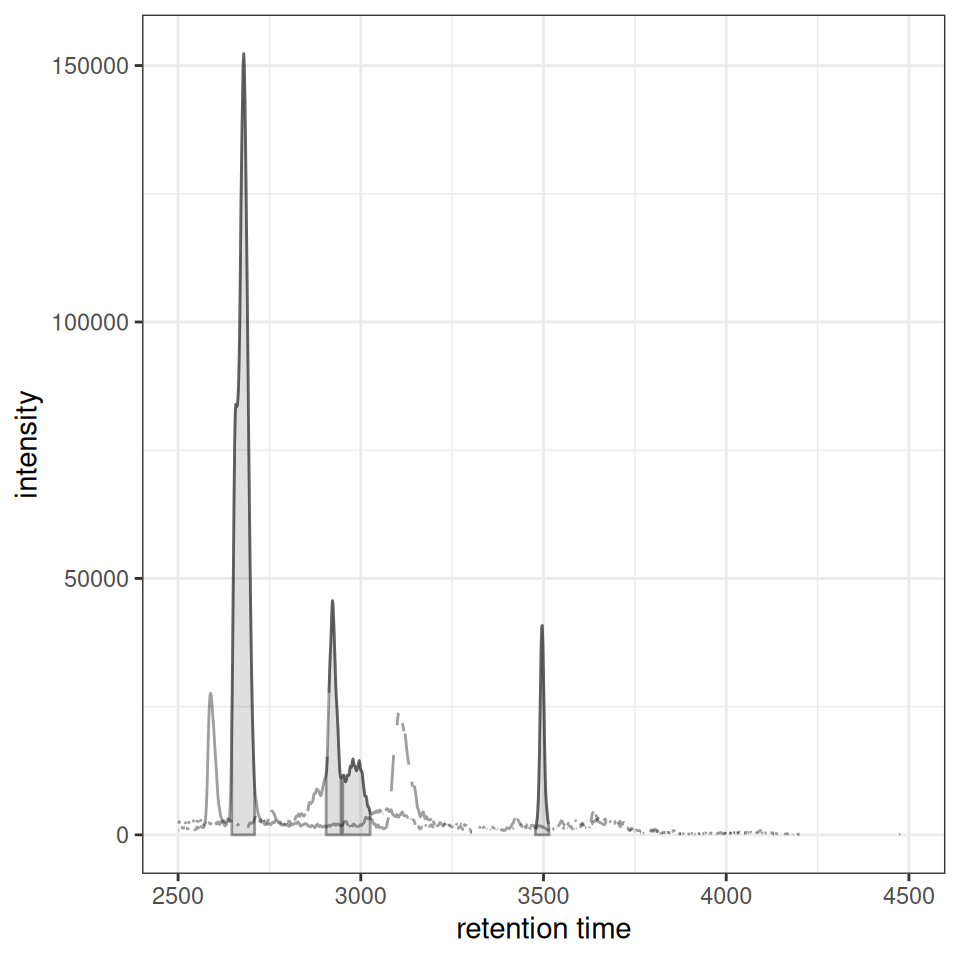

gplotChromatogramsOverlay() vs plotChromatogramsOverlay()

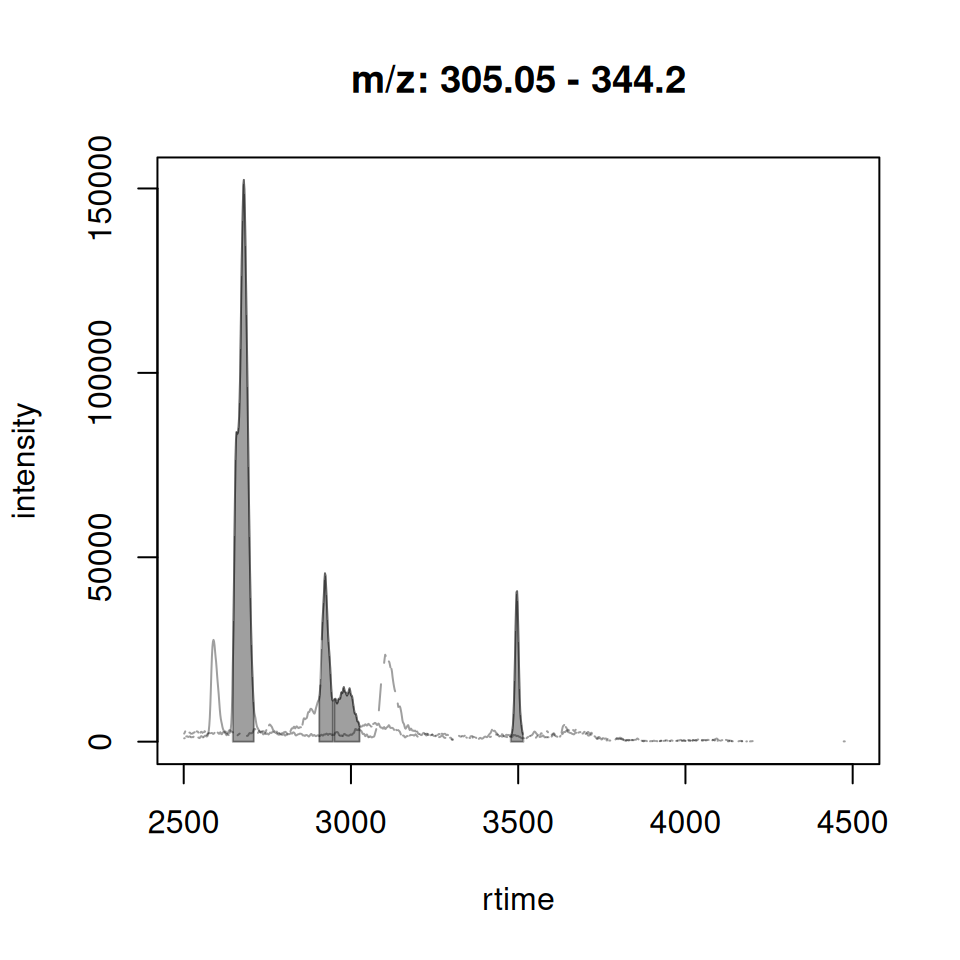

Original xcms
plotChromatogramsOverlay(chr_multi)
xcmsVis ggplot2
gplotChromatogramsOverlay(chr_multi)
