Introduction
This vignette covers the second step in the xcms metabolomics workflow: visualizing detected chromatographic peaks. After running findChromPeaks(), these functions help you:
- Assess peak detection quality
- Visualize peak distribution across samples
- Examine individual peak shapes
- Annotate chromatograms with detected peaks
xcms Workflow Context
┌───────────────────────────────┐
│ 1. Raw Data Visualization │
├───────────────────────────────┤
│ 2. PEAK DETECTION │ ← YOU ARE HERE
├───────────────────────────────┤
│ 3. Peak Correspondence │
│ 4. Retention Time Alignment │
│ 5. Feature Grouping │
└───────────────────────────────┘Functions Covered
| Function | Purpose | Input |
|---|---|---|
gplotChromPeaks() |
Show peaks in RT/m/z space | XcmsExperiment |
gplotChromPeakImage() |
Peak density heatmap | XcmsExperiment |
gplot(XChromatogram) |
Chromatogram with peaks | XChromatogram |
ghighlightChromPeaks() |
Add peak annotations | Layer for ggplot |
Setup
Data Preparation
We’ll use pre-processed example data with peaks already detected:
# Load pre-processed data with detected peaks
# This dataset contains 248 detected peaks from 3 samples
xdata <- loadXcmsData("faahko_sub2")
# Add sample metadata for visualization
sampleData(xdata)$sample_name <- c("KO01", "KO02", "WT01")
sampleData(xdata)$sample_group <- c("KO", "KO", "WT")
# Check number of peaks detected
cat("Total peaks detected:", nrow(chromPeaks(xdata)), "\n")
#> Total peaks detected: 248Part 1: Peak Distribution Visualization
gplotChromPeaks(): Peak Rectangles in RT/m/z Space
The gplotChromPeaks() function creates a scatter plot showing detected peaks as rectangles in retention time vs m/z space.

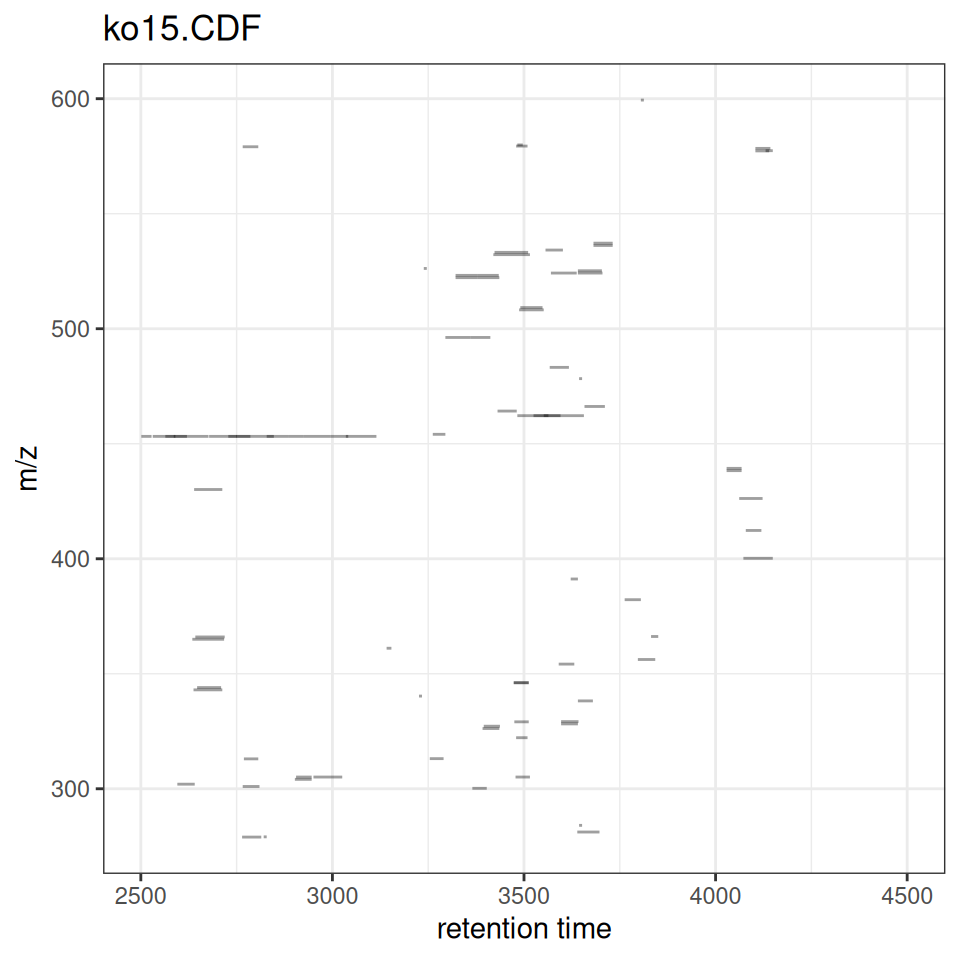

Basic Usage
gplotChromPeaks(xdata, file = 1)

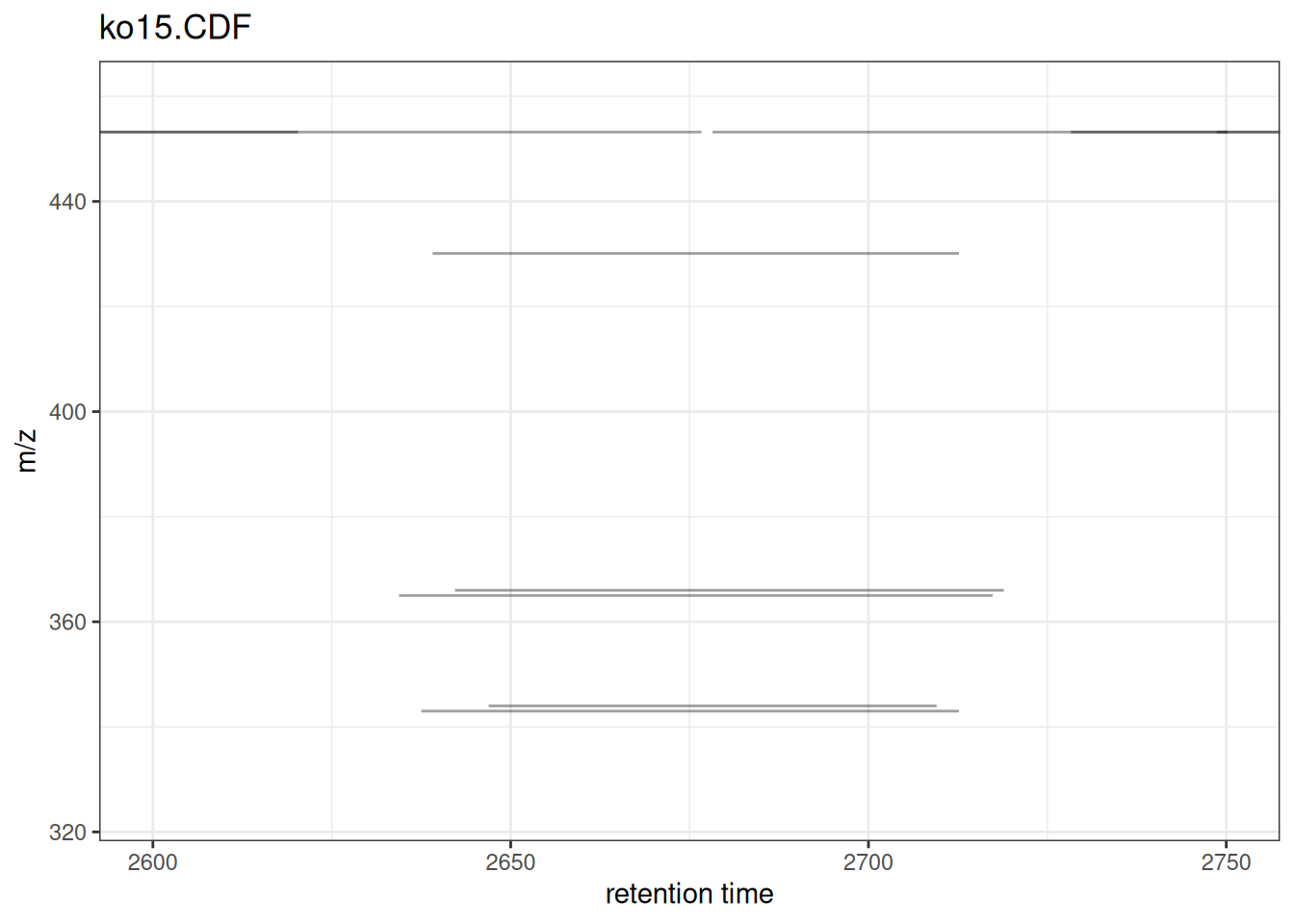

Focusing on a Region
# Focus on a specific RT and m/z region
gplotChromPeaks(
xdata,
file = 1,
xlim = c(2600, 2750),
ylim = c(325,460)
)

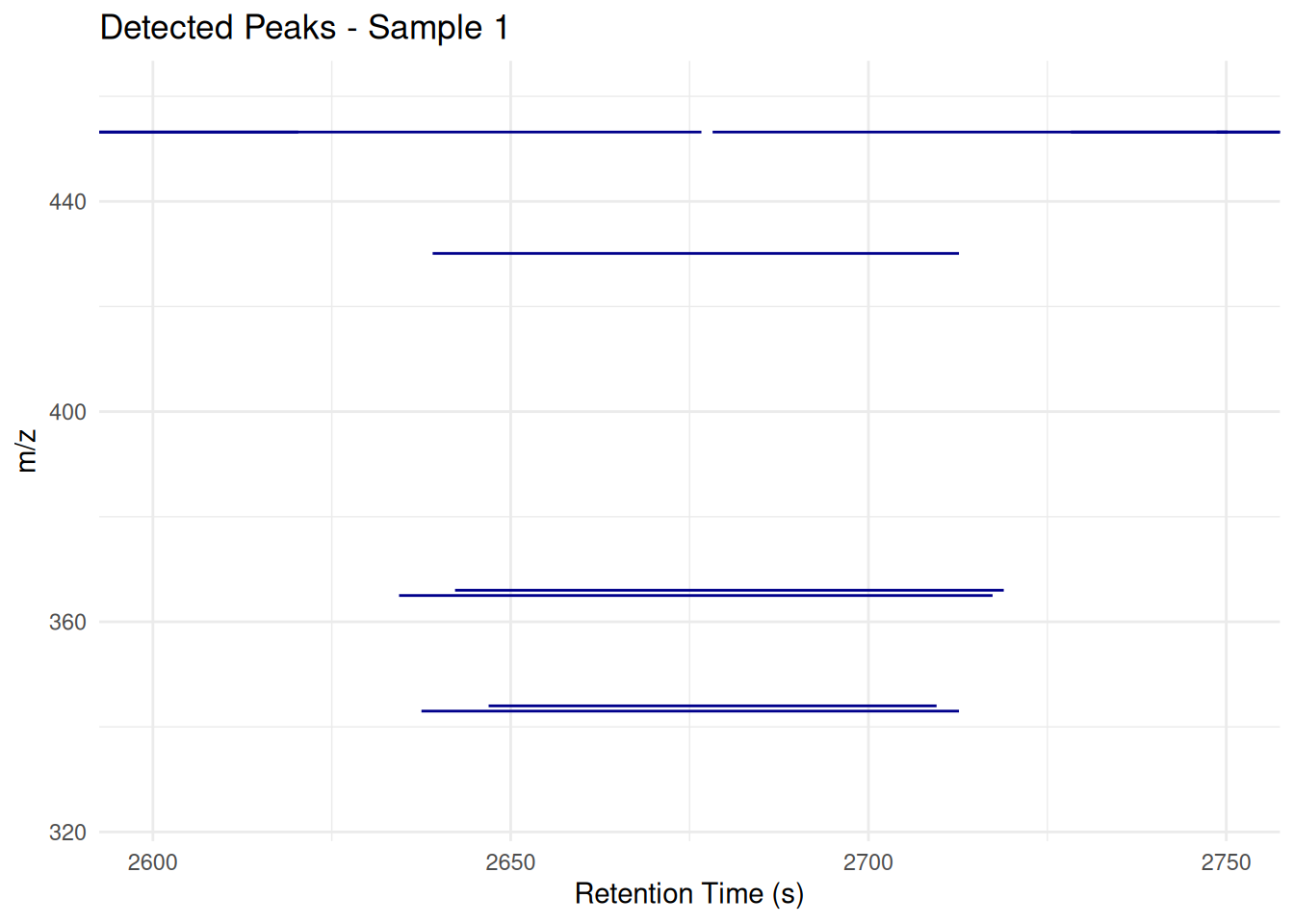

Customizing the Plot
gplotChromPeaks(xdata, file = 1,
xlim = c(2600, 2750),
ylim = c(325,460),
border = "darkblue",
fill = "lightblue"
) +
labs(
title = "Detected Peaks - Sample 1",
x = "Retention Time (s)",
y = "m/z"
) +
theme_minimal()

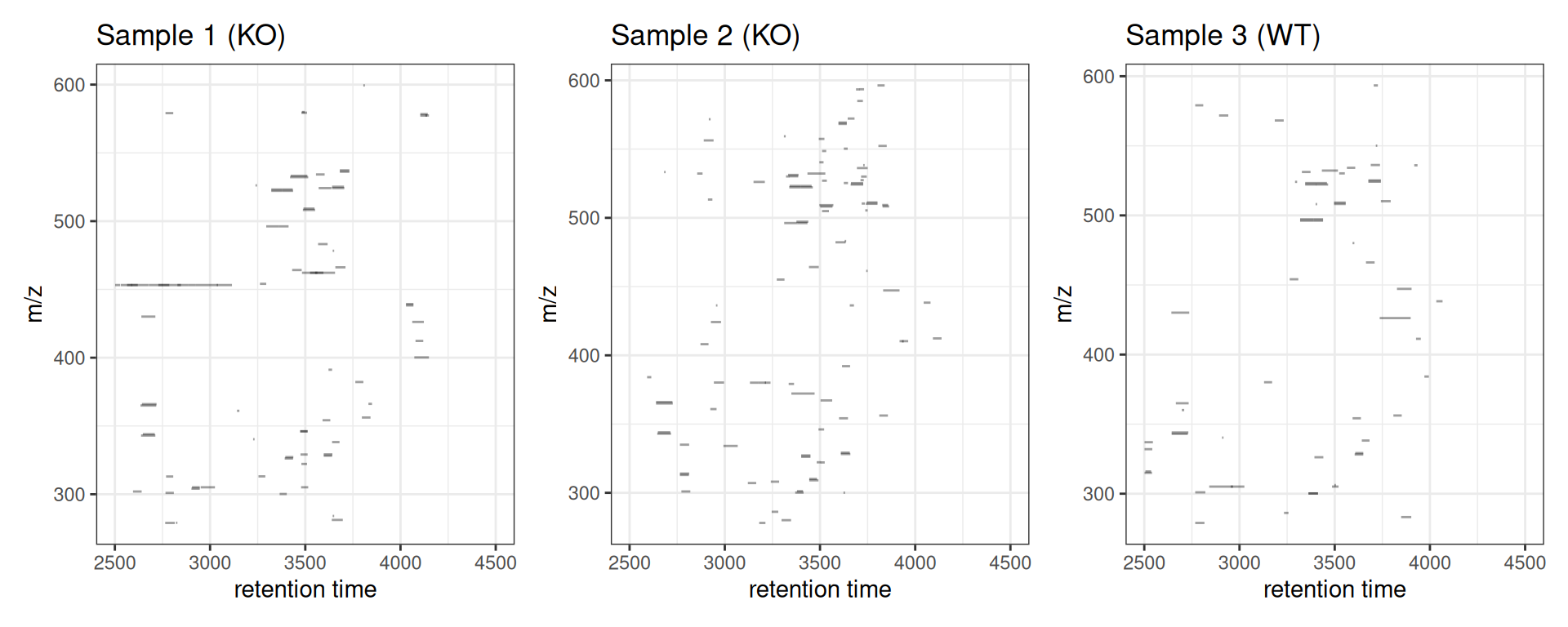

Comparing Multiple Samples
p_s1 <- gplotChromPeaks(xdata, file = 1) + labs(title = "Sample 1 (KO)")
p_s2 <- gplotChromPeaks(xdata, file = 2) + labs(title = "Sample 2 (KO)")
p_s3 <- gplotChromPeaks(xdata, file = 3) + labs(title = "Sample 3 (WT)")
p_s1 + p_s2 + p_s3

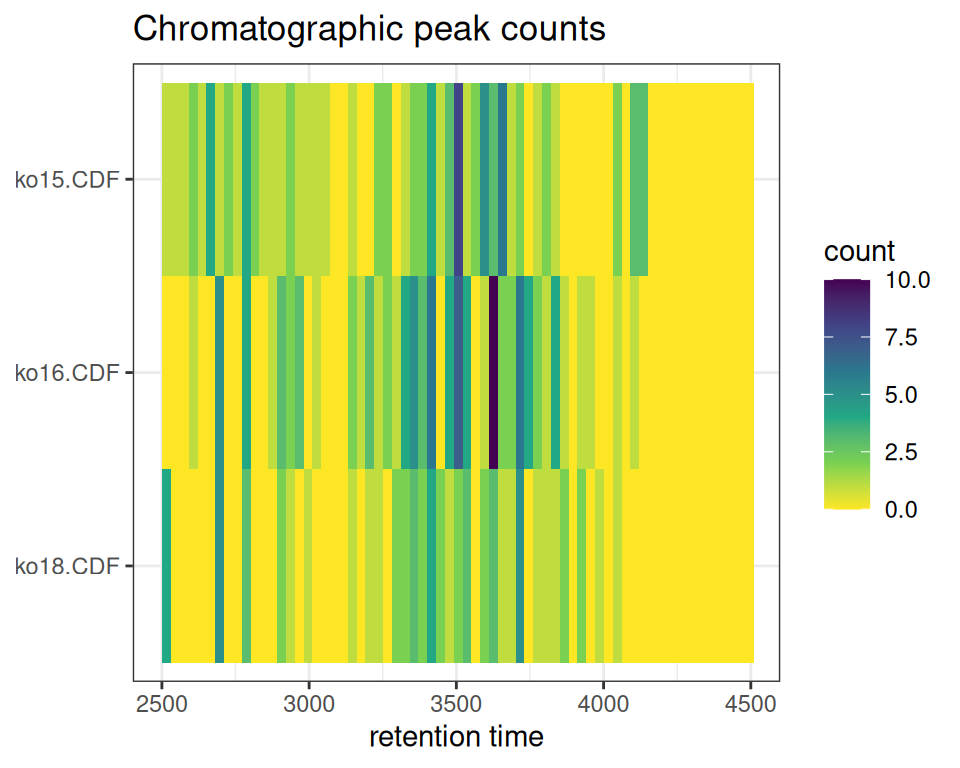

gplotChromPeakImage(): Peak Density Heatmap
The gplotChromPeakImage() function creates a heatmap showing the number of detected peaks per sample across retention time bins.
Basic Usage
gplotChromPeakImage(xdata, binSize = 30)

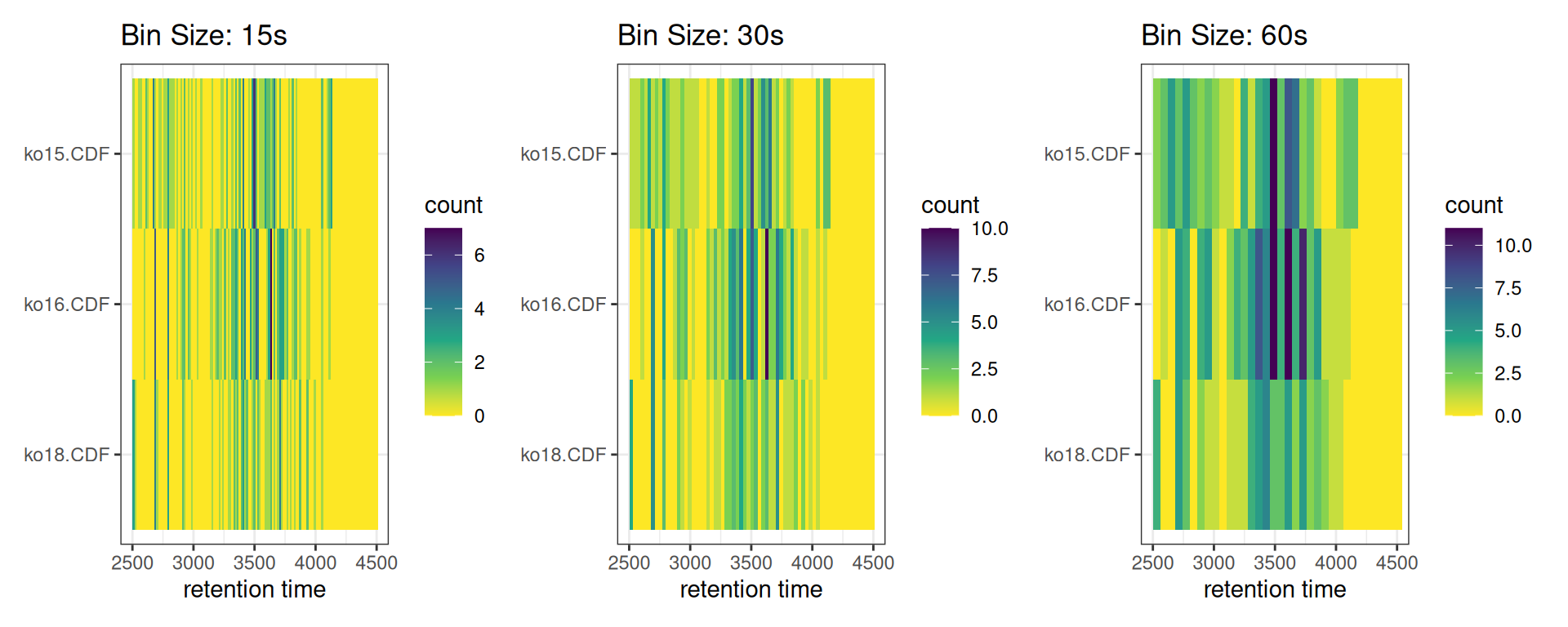

With Different Bin Sizes
p_b15 <- gplotChromPeakImage(xdata, binSize = 15) +
labs(title = "Bin Size: 15s")
p_b30 <- gplotChromPeakImage(xdata, binSize = 30) +
labs(title = "Bin Size: 30s")
p_b60 <- gplotChromPeakImage(xdata, binSize = 60) +
labs(title = "Bin Size: 60s")
p_b15 + p_b30 + p_b60

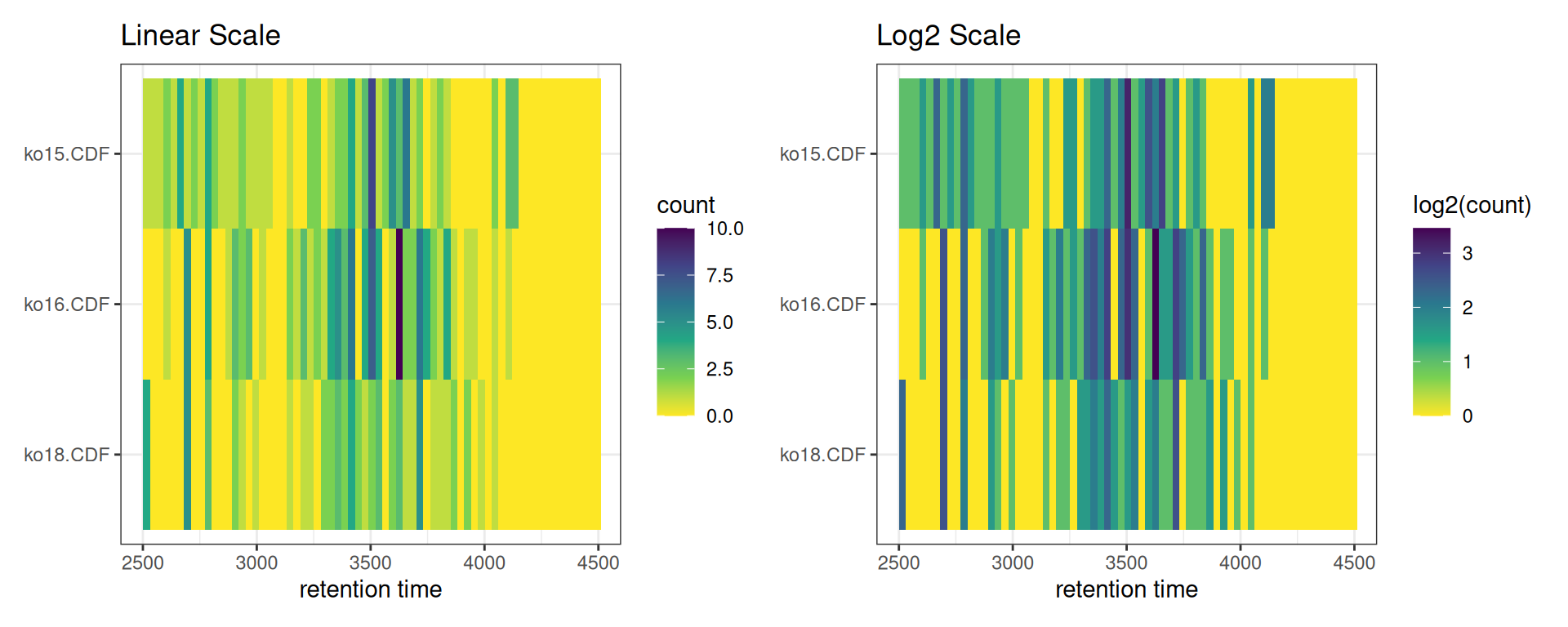

Log-Transformed View
p_linear <- gplotChromPeakImage(xdata, log_transform = FALSE) +
labs(title = "Linear Scale")
p_log <- gplotChromPeakImage(xdata, log_transform = TRUE) +
labs(title = "Log2 Scale")
p_linear + p_log
Interactive Version
p3 <- gplotChromPeakImage(xdata, binSize = 30)
ggplotly(p3)Part 2: Chromatogram Visualization

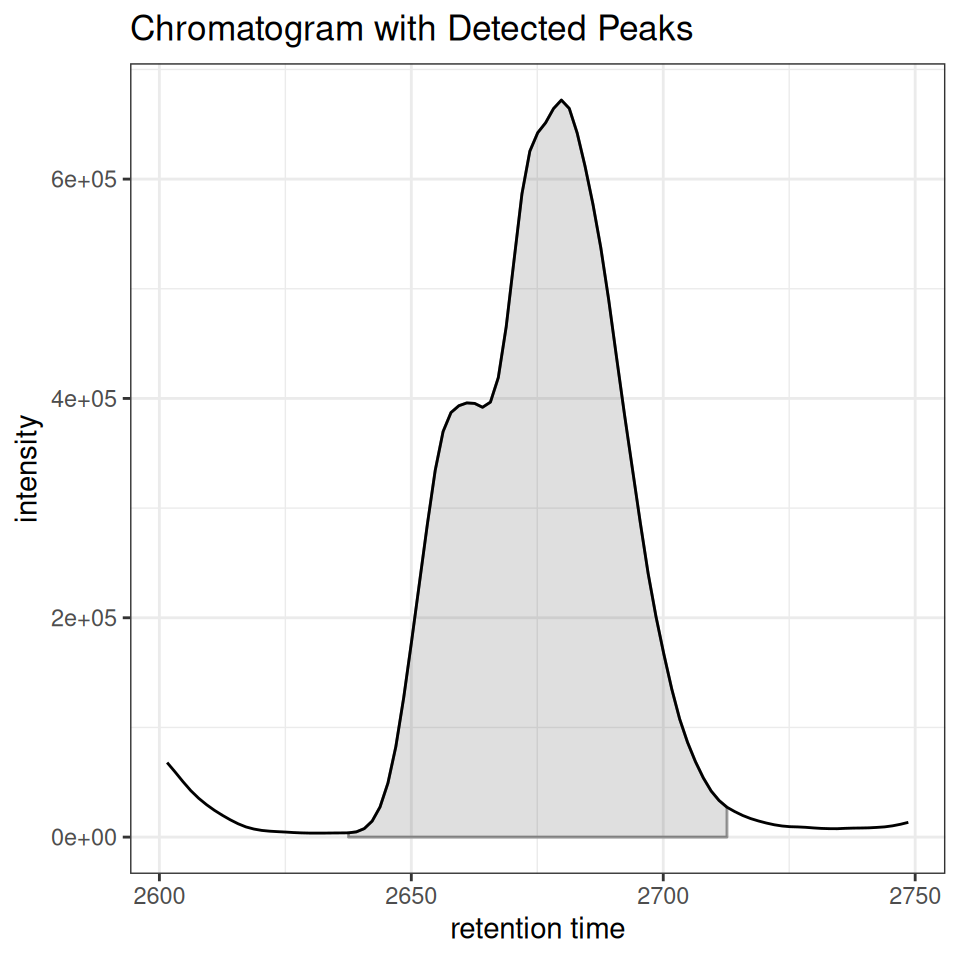

gplot(XChromatogram): Automatic Peak Plotting
First, let’s extract a chromatogram for a specific m/z range:
# Extract chromatogram for m/z 200-210
mz_range <- c(343-0.2,343+0.2)
rt_range <- c(2600, 2750)
# Get chromatogram data
chr <- chromatogram(xdata, mz = mz_range, rt = rt_range)
Multiple Peak Types
Interactive Chromatogram
Part 3: Composable Peak Highlighting
ghighlightChromPeaks(): Adding Peak Layers
For more control, ghighlightChromPeaks() returns ggplot2 layers that can be added to any chromatogram plot:
# Start with gplot() which creates the chromatogram
p_chrom <- gplot(chr[1, 1], peakType = "none") +
labs(
title = "Chromatogram with Highlighted Peaks (Rectangle)",
x = "Retention Time (s)",
y = "Intensity"
)
# Add peak highlights as rectangles

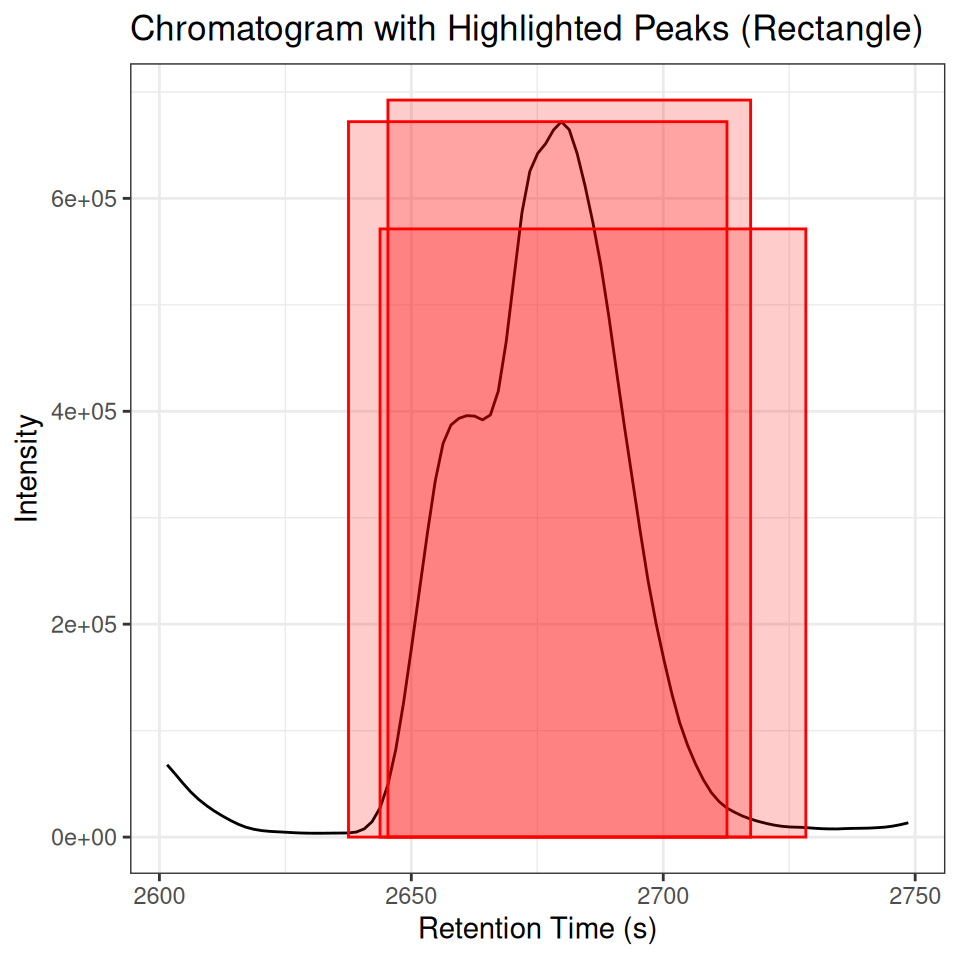

peak_layers <- ghighlightChromPeaks(
xdata,
rt = rt_range,
mz = mz_range,
type = "rect",
border = "red",
fill = alpha("red", 0.2)
)
# Combine base plot with peak annotations
p_chrom + peak_layers
Understanding Peak Highlighting Behavior

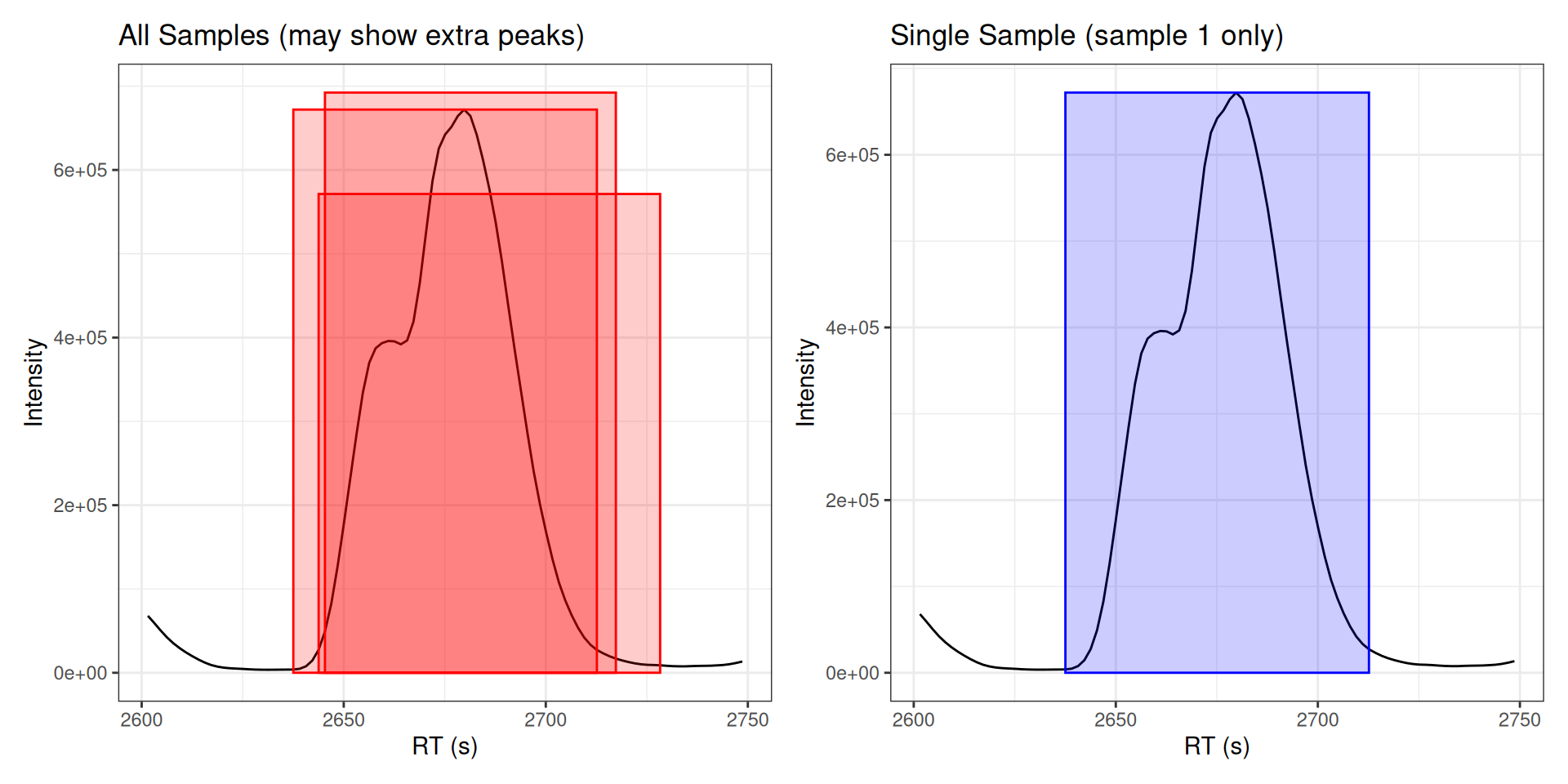

The ghighlightChromPeaks() function searches all peaks across all samples. For cleaner visualization, filter to a single sample:
# Without filtering: shows peaks from ALL samples
p_all <- gplot(chr[1, 1], peakType = "none") +
ghighlightChromPeaks(xdata,
rt = rt_range,
mz = mz_range,
type = "rect",
border = "red",
fill = alpha("red", 0.2)) +
labs(title = "All Samples (may show extra peaks)",
x = "RT (s)", y = "Intensity")
# With filtering: shows only peaks from sample 1
xdata_filtered <- filterFile(xdata, 1)
p_filtered <- gplot(chr[1, 1], peakType = "none") +
ghighlightChromPeaks(xdata_filtered,
rt = rt_range,
mz = mz_range,
type = "rect",
border = "blue",
fill = alpha("blue", 0.2)) +
labs(title = "Single Sample (sample 1 only)",
x = "RT (s)", y = "Intensity")
p_all + p_filtered

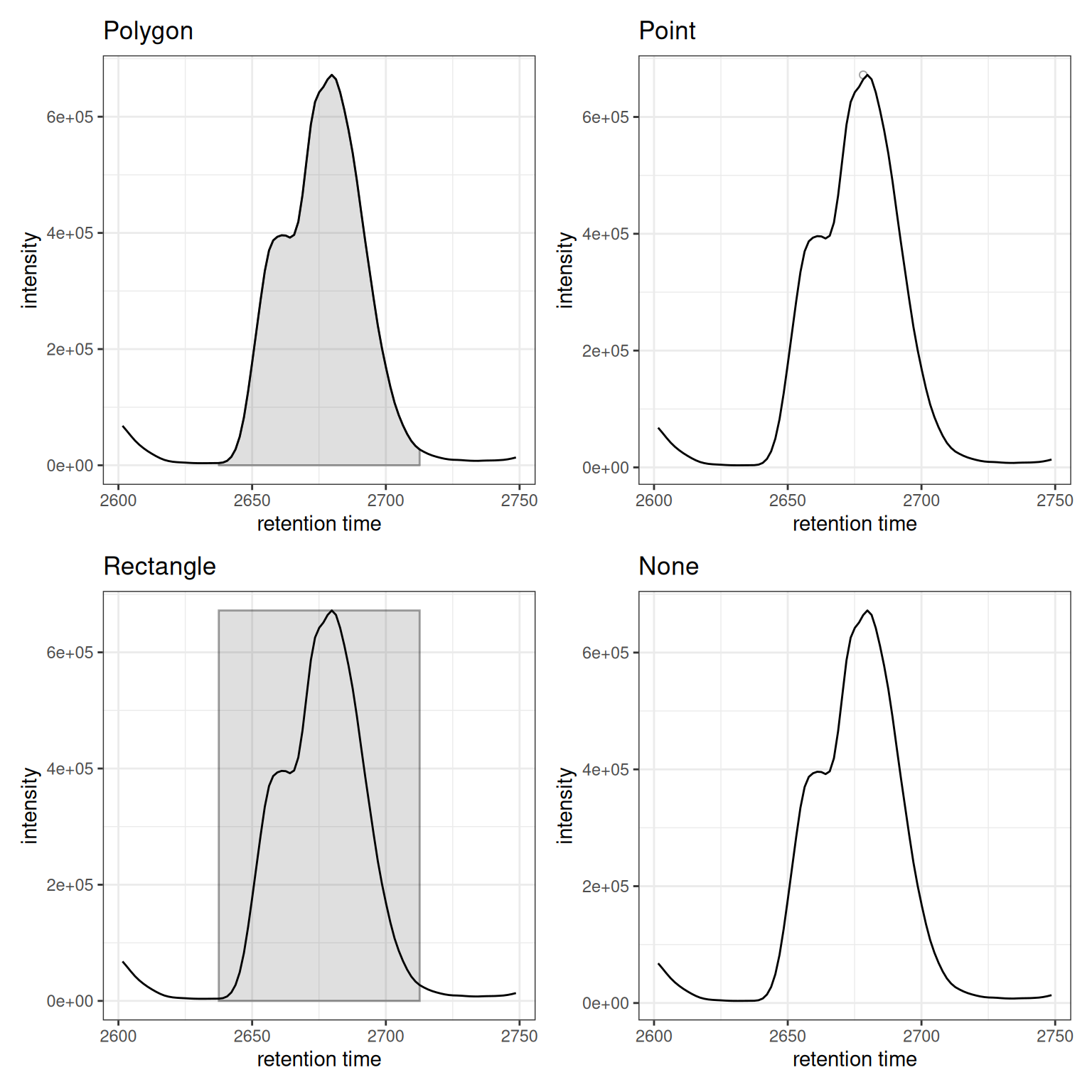

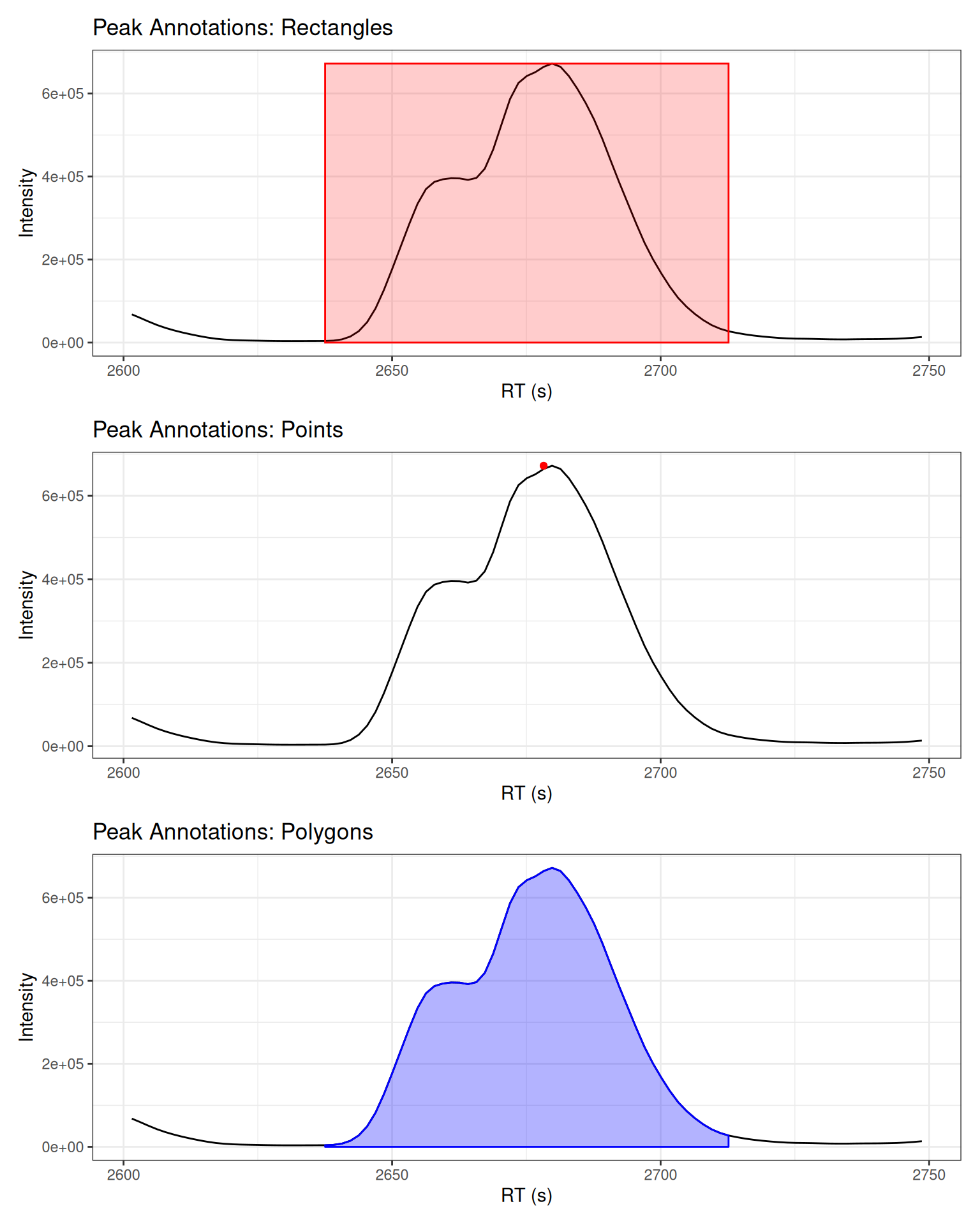

Different Visualization Types
xdata_filtered <- filterFile(xdata, 1)
# Type: Rectangle
p_rect <- gplot(chr[1, 1], peakType = "none") +
labs(title = "Peak Annotations: Rectangles", x = "RT (s)", y = "Intensity")
peak_rects <- ghighlightChromPeaks(
xdata_filtered,
rt = rt_range,
mz = mz_range,
type = "rect",
border = "red",
fill = alpha("red", 0.2)
)
# Type: Point
p_point <- gplot(chr[1, 1], peakType = "none") +
labs(title = "Peak Annotations: Points", x = "RT (s)", y = "Intensity")
peak_points <- ghighlightChromPeaks(
xdata_filtered,
rt = rt_range,
mz = mz_range,
type = "point",
border = "red"
)
# Type: Polygon
p_poly <- gplot(chr[1, 1], peakType = "none") +
labs(title = "Peak Annotations: Polygons", x = "RT (s)", y = "Intensity")
peak_polygons <- ghighlightChromPeaks(
xdata_filtered,
rt = rt_range,
mz = mz_range,
type = "polygon",
border = "blue",
fill = alpha("blue", 0.3)
)
# Display all three types
(p_rect + peak_rects) /
(p_point + peak_points) /
(p_poly + peak_polygons)
Peak Selection Criteria
# whichPeaks: "any" - peaks that overlap the range
p_any <- gplot(chr[1, 1], peakType = "none") +
labs(title = "whichPeaks = 'any'", x = "RT (s)", y = "Intensity")
peaks_any <- ghighlightChromPeaks(
xdata_filtered, rt = rt_range, mz = mz_range,
whichPeaks = "any", border = "red", fill = alpha("red", 0.2)
)
# whichPeaks: "within" - peaks fully within the range
p_within <- gplot(chr[1, 1], peakType = "none") +
labs(title = "whichPeaks = 'within'", x = "RT (s)", y = "Intensity")
peaks_within <- ghighlightChromPeaks(
xdata_filtered, rt = rt_range, mz = mz_range,
whichPeaks = "within", border = "blue", fill = alpha("blue", 0.2)
)
# whichPeaks: "apex_within" - peaks with apex in range
p_apex <- gplot(chr[1, 1], peakType = "none") +
labs(title = "whichPeaks = 'apex_within'", x = "RT (s)", y = "Intensity")
peaks_apex <- ghighlightChromPeaks(
xdata_filtered, rt = rt_range, mz = mz_range,
whichPeaks = "apex_within", border = "green", fill = alpha("green", 0.2)
)
# Display comparison
(p_any + peaks_any) / (p_within + peaks_within) / (p_apex + peaks_apex)
Combining Visualizations
Create comprehensive peak detection summaries:

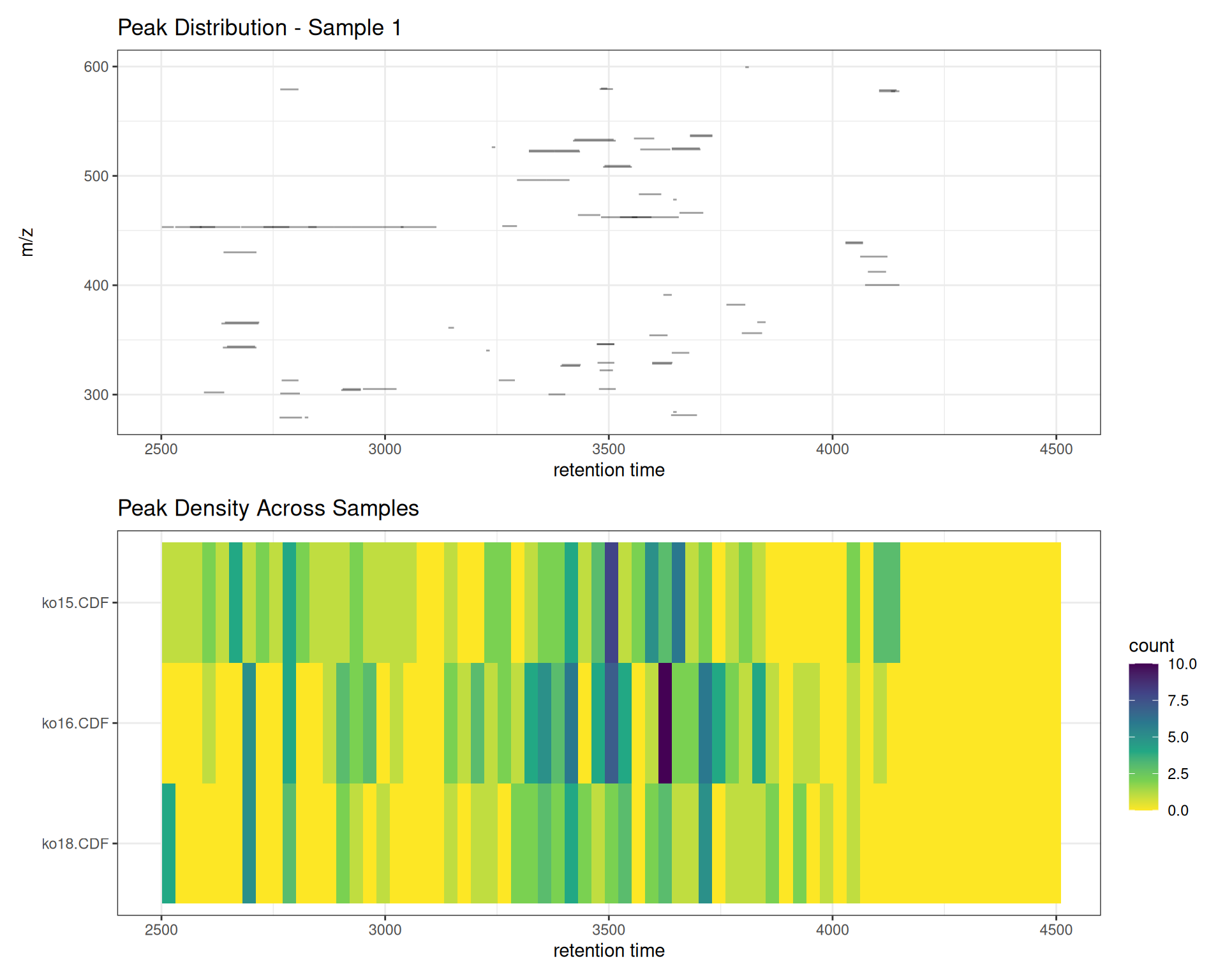

# Peak distribution for one sample
p_dist <- gplotChromPeaks(xdata, file = 1) +
labs(title = "Peak Distribution - Sample 1")
# Peak density across all samples
p_density <- gplotChromPeakImage(xdata, binSize = 30) +
labs(title = "Peak Density Across Samples")
# Combine
p_dist / p_density
Summary
Use Cases
- Quality control: Verify peak detection quality
- Method development: Optimize CentWave parameters
- Sample comparison: Compare peak detection across samples
- Peak inspection: Examine individual peak shapes
Next Steps
After visualizing detected peaks, proceed to:
→ Step 3: Peak Correspondence - Group peaks across samples
Comparison with Original xcms
Original xcms

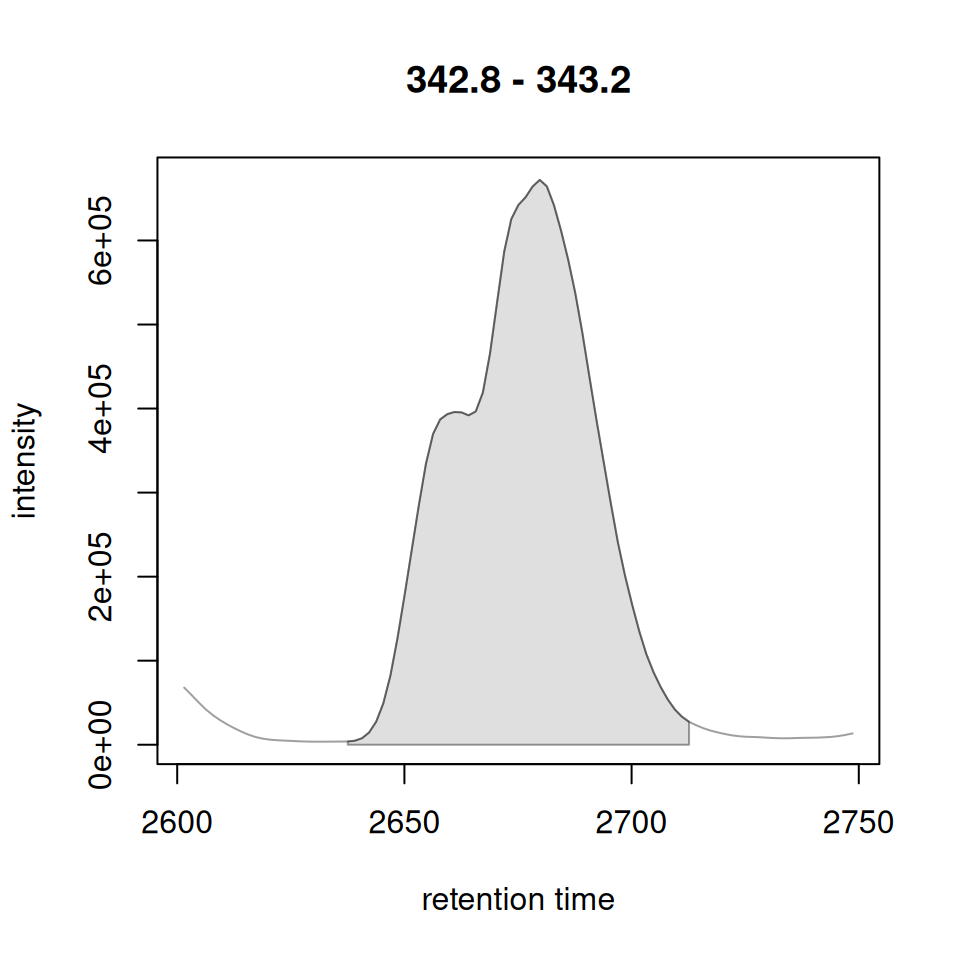

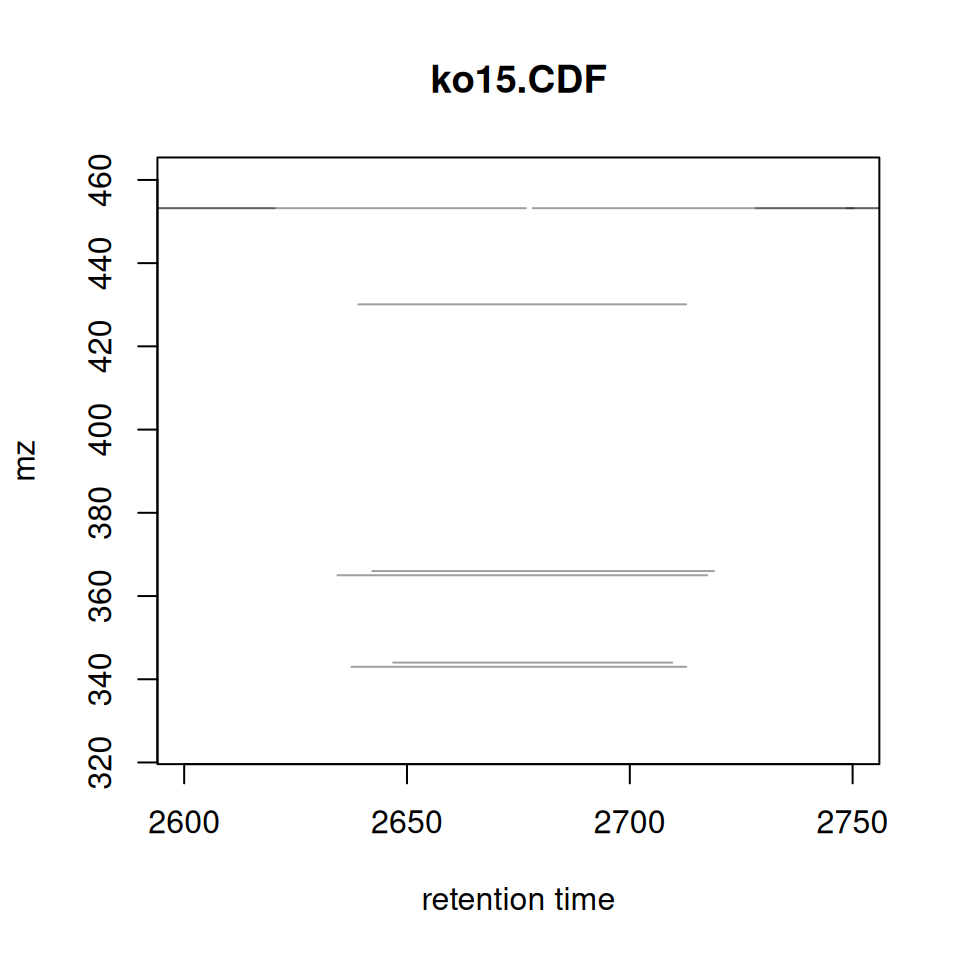

plotChromPeaks(xdata, file = 1, xlim = c(2600, 2750), ylim = c(325,460))

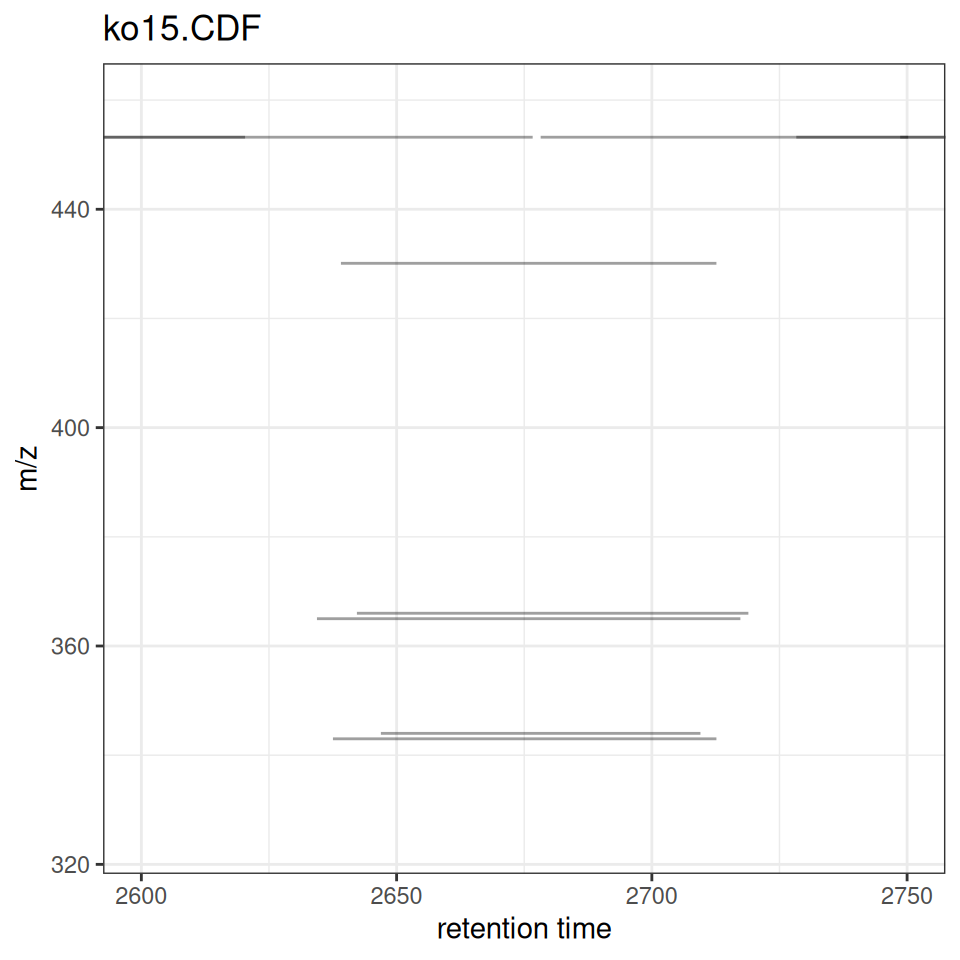

xcmsVis ggplot2
gplotChromPeaks(xdata, file = 1, xlim = c(2600, 2750), ylim = c(325,460))
gplotChromPeakImage() vs plotChromPeakImage()

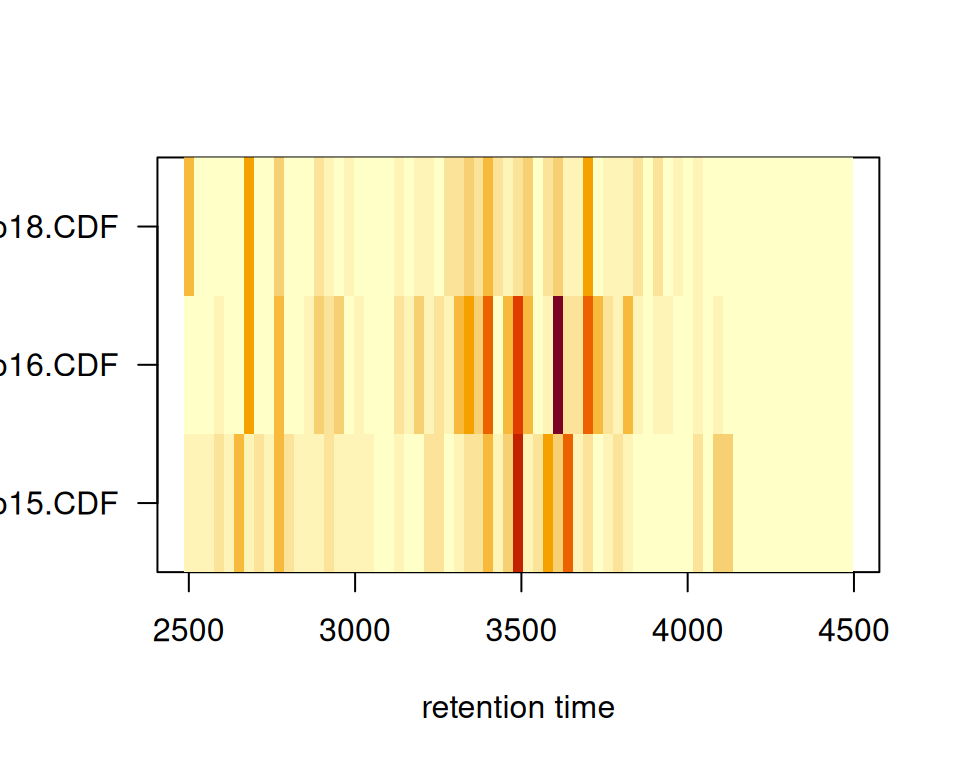

Original xcms
plotChromPeakImage(xdata, binSize = 30)
xcmsVis ggplot2
gplotChromPeakImage(xdata, binSize = 30)
gplot(XChromatogram) vs plot(Chromatogram)
ghighlightChromPeaks() vs highlightChromPeaks()

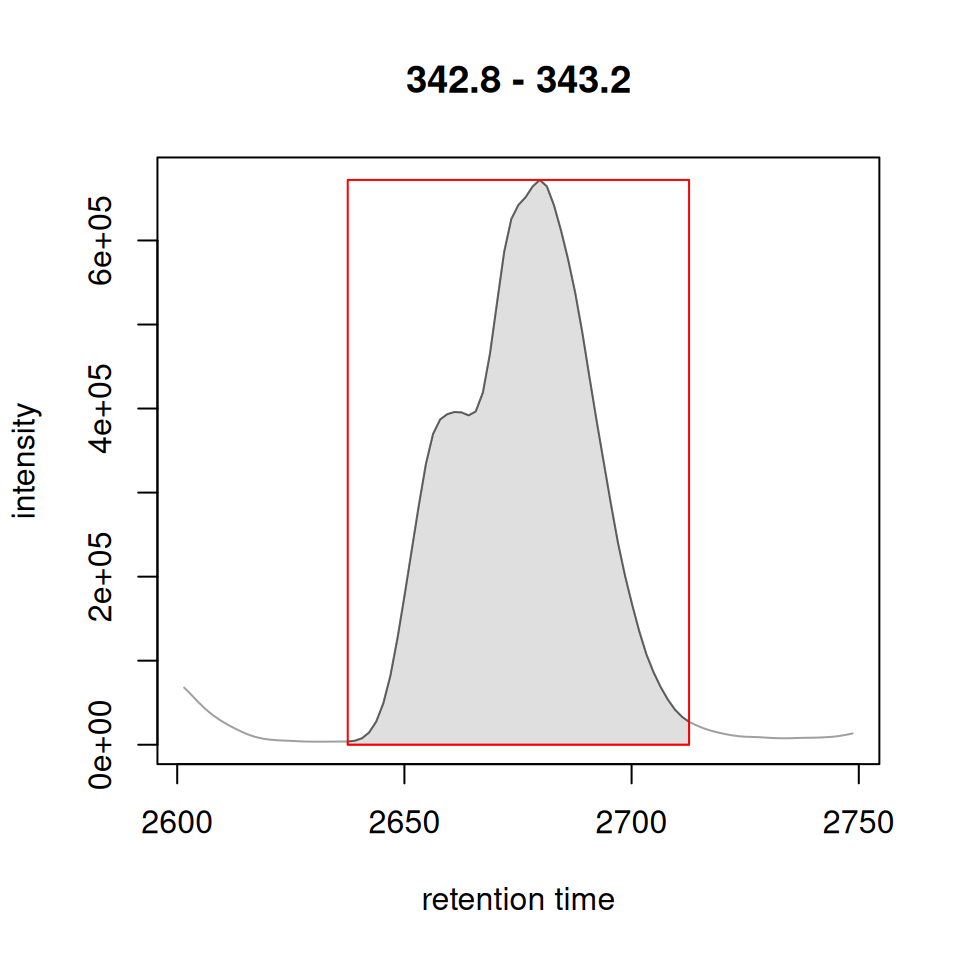

Original xcms
xdata_filtered <- filterFile(xdata, 1)
# Convert to XCMSnExp for original XCMS function
xdata_xcmsnexp <- as(xdata_filtered, "XCMSnExp")
plot(chr[1, 1])
highlightChromPeaks(xdata_xcmsnexp, rt = rt_range, mz = mz_range,
type = "rect", border = "red")

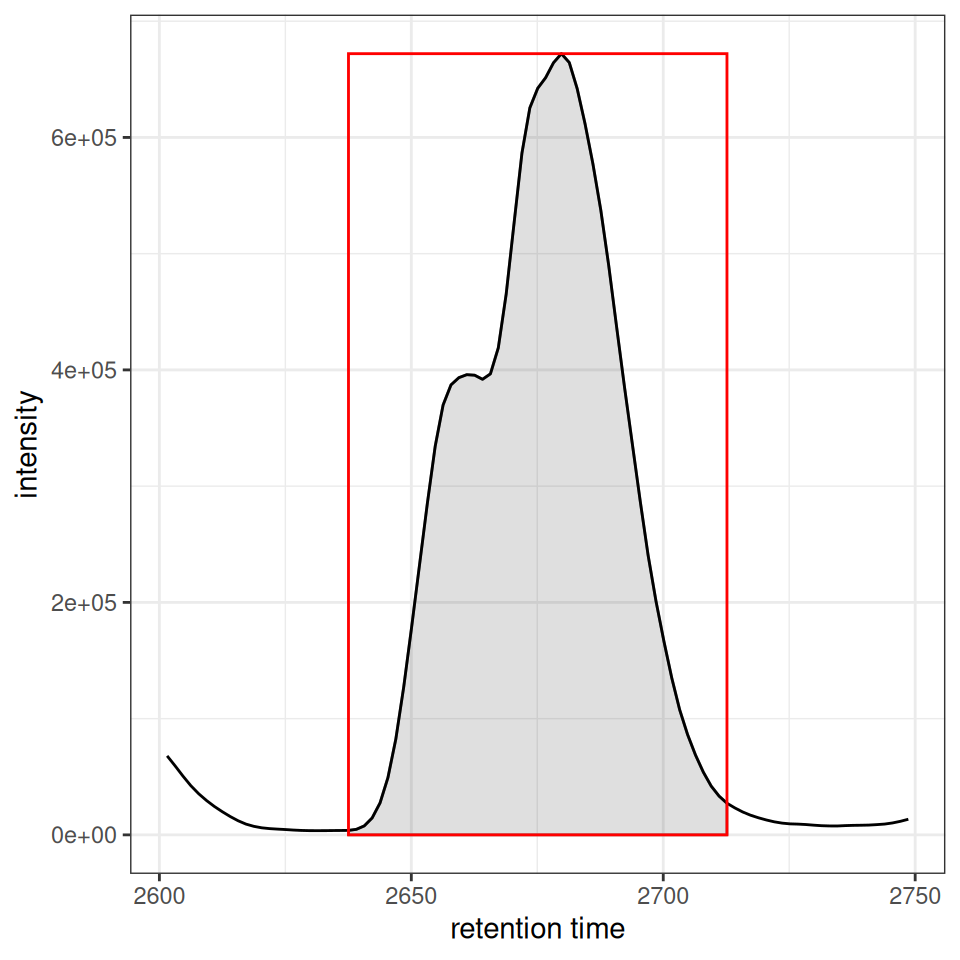

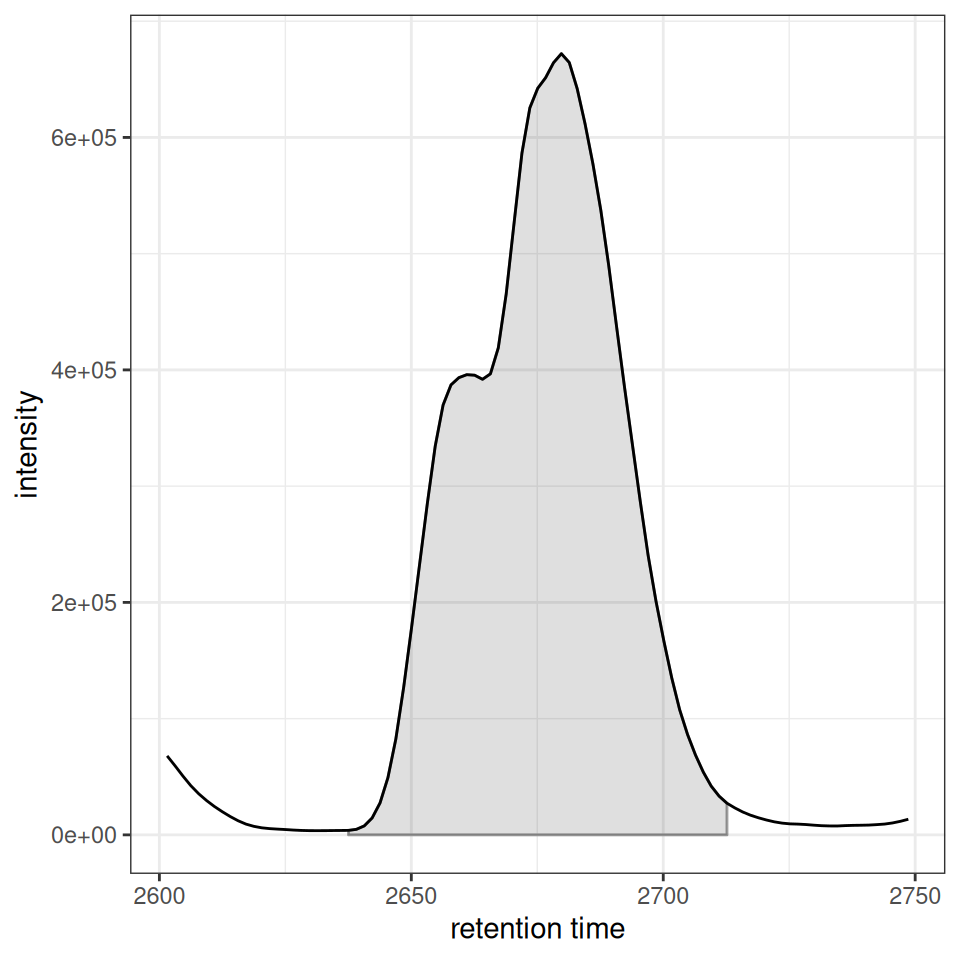

xcmsVis ggplot2
gplot(chr[1, 1]) +
ghighlightChromPeaks(xdata_filtered, rt = rt_range, mz = mz_range,
type = "rect", border = "red", fill = NA)
