Step 4: Retention Time Alignment Visualization
2026-03-20
Source:vignettes/step4-retention-time-alignment.qmd
Introduction
This vignette covers the fourth step in the xcms metabolomics workflow: retention time alignment. After peak correspondence, these functions help you:
- Visualize retention time corrections across samples
- Assess alignment quality
- Compare different alignment methods
- Examine alignment model parameters (LamaParama)
xcms Workflow Context
┌───────────────────────────────┐
│ 1. Raw Data Visualization │
│ 2. Peak Detection │
│ 3. Peak Correspondence │
├───────────────────────────────┤
│ 4. RT ALIGNMENT │ ← YOU ARE HERE
├───────────────────────────────┤
│ 5. Feature Grouping │
└───────────────────────────────┘What is Retention Time Alignment?
Retention time alignment (also called retention time correction) adjusts for systematic shifts in retention time between samples. This improves feature detection by ensuring that the same compound elutes at consistent times across all samples.
Functions Covered
| Function | Purpose | Input Type |
|---|---|---|
gplotAdjustedRtime() |
General RT alignment visualization |
XcmsExperiment, XCMSnExp
|
gplot(LamaParama) |
LamaParama-specific model visualization |
LamaParama object |
Setup
Data Preparation
We’ll use the faahKO package data:
# Get example CDF files
cdf_files <- dir(system.file("cdf", package = "faahKO"),
recursive = TRUE, full.names = TRUE)
# Using 6 samples (3 from each group)
cdf_files <- cdf_files[c(1:3, 7:9)]
# Load data as XcmsExperiment
xdata_raw <- readMsExperiment(
spectraFiles = cdf_files,
BPPARAM = SerialParam()
)
# Add sample metadata
sample_group <- rep(c("KO", "WT"), each = 3)
sampleData(xdata_raw)$sample_name <- basename(cdf_files)
sampleData(xdata_raw)$sample_group <- sample_groupPeak Detection and Correspondence
# Peak detection
cwp <- CentWaveParam(
peakwidth = c(20, 80),
ppm = 25
)
xdata_peaks <- findChromPeaks(xdata_raw, param = cwp, BPPARAM = SerialParam())
# Initial correspondence (peak grouping)
sample_data <- sampleData(xdata_peaks)
pdp <- PeakDensityParam(
sampleGroups = sample_data$sample_group,
minFraction = 0.4,
bw = 30
)
xdata_grouped <- groupChromPeaks(xdata_peaks, param = pdp)Part 1: General Alignment Visualization
gplotAdjustedRtime(): PeakGroups Method
Basic Workflow
# Work with a copy of the grouped data
xdata <- xdata_grouped
# Retention time alignment using peak groups
pgp <- PeakGroupsParam(
minFraction = 0.4,
smooth = "loess",
span = 0.2,
family = "gaussian"
)
xdata <- adjustRtime(xdata, param = pgp)Creating the Plot

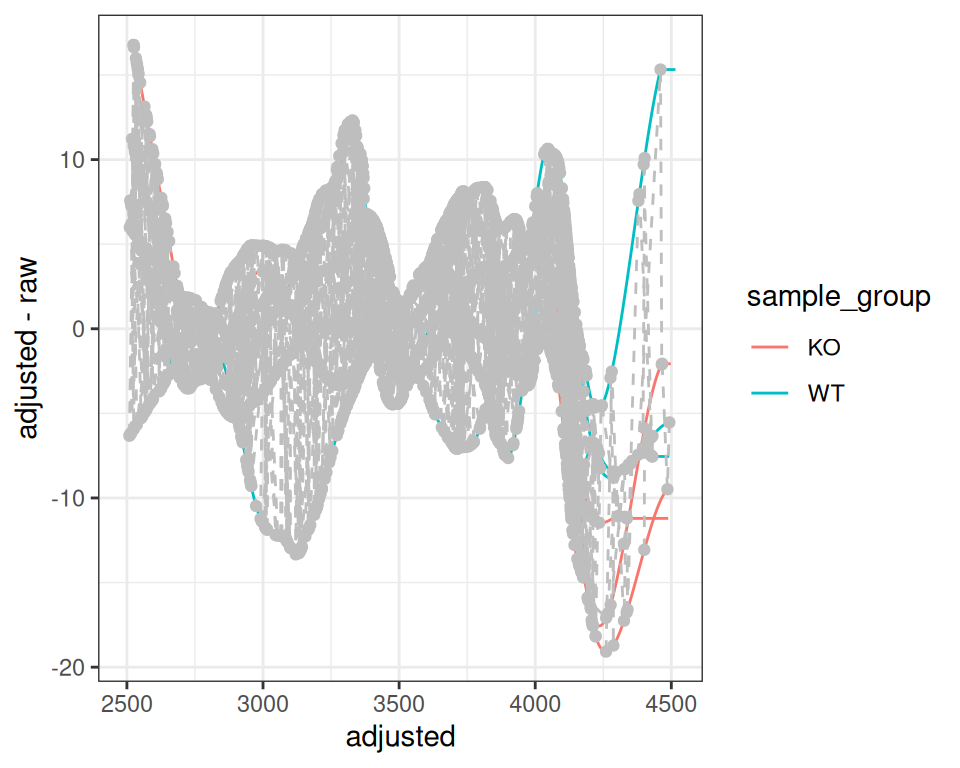

p <- gplotAdjustedRtime(xdata, color_by = sample_group)
print(p)
The plot shows:
- Lines: One per sample, showing RT deviation across the chromatographic run
- Grey circles: Individual peaks used for alignment
- Grey dashed lines: Connect peaks from the same feature across samples

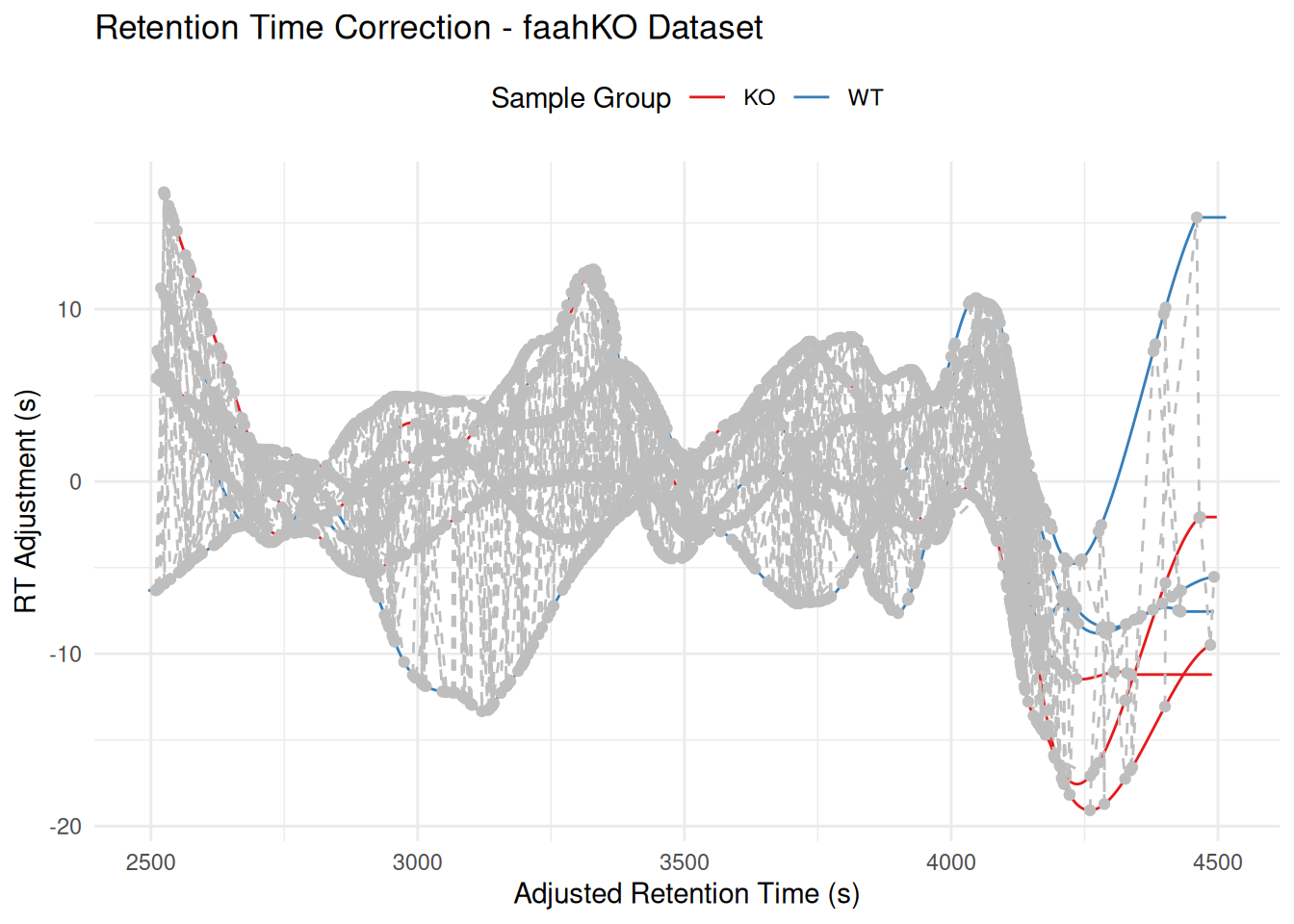

Customizing the Plot
p +
labs(
title = "Retention Time Correction - faahKO Dataset",
x = "Adjusted Retention Time (s)",
y = "RT Adjustment (s)",
color = "Sample Group"
) +
theme_minimal() +
scale_color_brewer(palette = "Set1") +
theme(legend.position = "top")
Interactive Visualization
p_interactive <- ggplotly(p, tooltip = "text")
p_interactiveAdvanced Use Cases

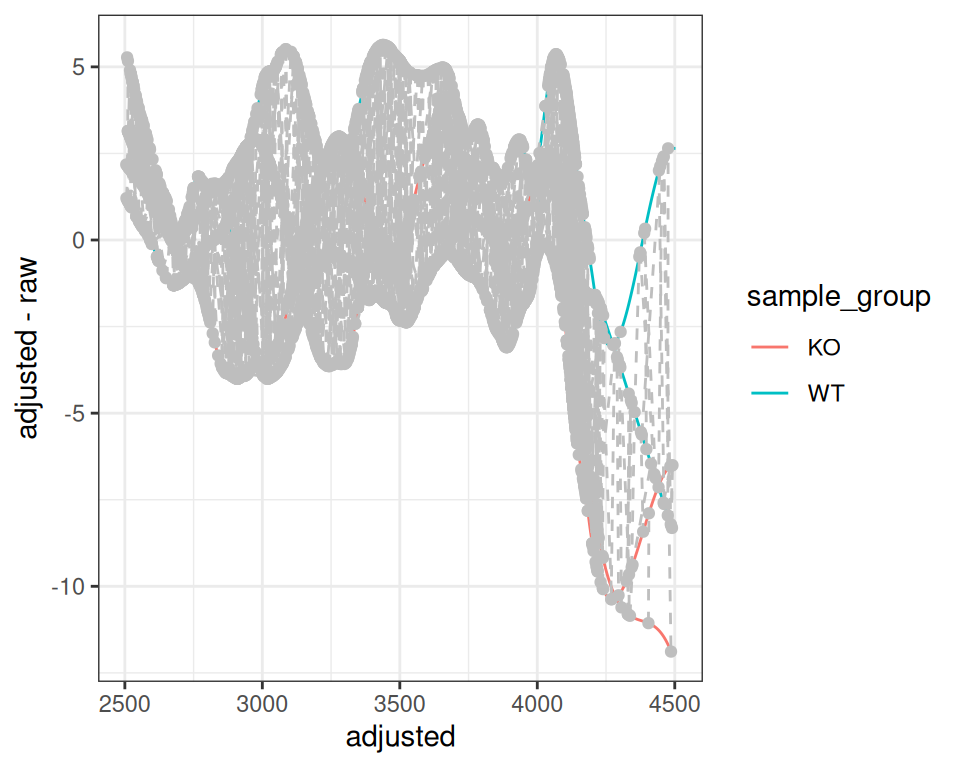

With filterFile()
# Work with a fresh copy from grouped data
xdata_filtered <- xdata_grouped
# Filter to specific samples (files 2-5)
xdata_filtered <- filterFile(xdata_filtered, c(2:5))
# Filtering removes correspondence - need to re-group with filtered samples
sample_data_filtered <- sampleData(xdata_filtered)
pdp_filtered <- PeakDensityParam(
sampleGroups = sample_data_filtered$sample_group,
minFraction = 0.4,
bw = 30
)
xdata_filtered <- groupChromPeaks(xdata_filtered, param = pdp_filtered)
# Align filtered data
pgp_filter <- PeakGroupsParam(minFraction = 0.4)
xdata_filtered <- adjustRtime(xdata_filtered, param = pgp_filter)
gplotAdjustedRtime(xdata_filtered, color_by = sample_group)

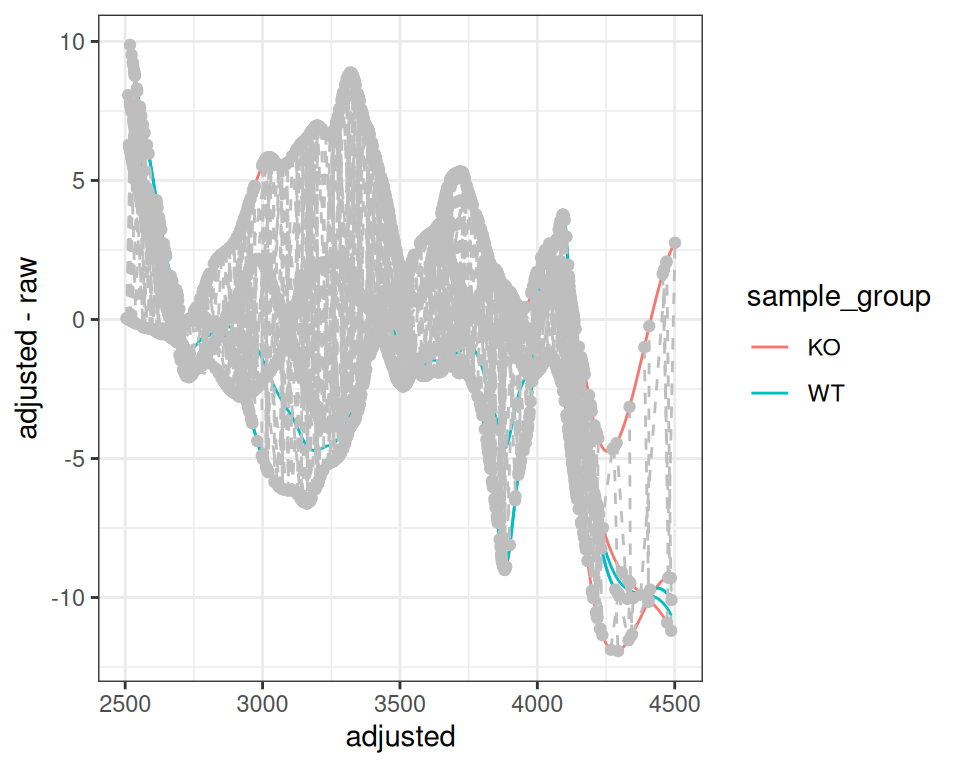

With subset Parameter
You can use only specific samples for alignment calculation while keeping all samples in the dataset:
# Work with a fresh copy of grouped data
xdata_subset <- xdata_grouped
# Use subset parameter to align using only specific samples
pgp_subset <- PeakGroupsParam(
minFraction = 0.4,
smooth = "loess",
span = 0.2,
family = "gaussian",
subset = c(1, 2, 3, 5) # Exclude sample 4 from alignment calculation
)
xdata_subset <- adjustRtime(xdata_subset, param = pgp_subset)
gplotAdjustedRtime(xdata_subset, color_by = sample_group)
Part 2: LamaParama Alignment Visualization
What is LamaParama?
LamaParama (Landmark-based Alignment Parameters) is an alignment method in xcms that uses feature groups as “landmarks” to correct retention time shifts. Unlike other methods, it explicitly models the RT relationship and stores the alignment parameters for visualization and quality assessment.
Landmark-Based Alignment
LamaParama alignment works by using a subset of high-quality features as “landmarks” to model retention time shifts. The key is to select features that are reliably detected across samples.
# Work with fresh grouped data
xdata_lama <- xdata_grouped
# Filter to high-quality features present in most samples
# Using PercentMissingFilter to keep only features found in at least 80%
# of samples
library(MsFeatures)
xdata_filtered <- filterFeatures(
xdata_lama,
PercentMissingFilter(threshold = 20, f = sampleData(xdata_lama)$sample_group)
)
# Extract filtered feature definitions to use as landmarks
fdef_filtered <- featureDefinitions(xdata_filtered)
# Create landmark matrix (mz and rt columns) from the subset
lamas <- cbind(
mz = fdef_filtered$mzmed,
rt = fdef_filtered$rtmed
)
# Show how many landmarks we're using vs total features
cat("Using", nrow(lamas), "landmarks out of",
nrow(featureDefinitions(xdata_lama)), "total features\n")
#> Using 451 landmarks out of 1600 total features
# Create LamaParama object
lama_param <- LamaParama(
lamas = lamas,
method = "loess",
span = 0.4
)
# Perform alignment on the original (unfiltered) data using the landmark subset
xdata_lama <- adjustRtime(xdata_lama, param = lama_param)Visualizing LamaParama Results
Extract LamaParama Object
# Extract LamaParama from process history
proc_hist <- processHistory(xdata_lama,
type = xcms:::.PROCSTEP.RTIME.CORRECTION)
lama_result <- proc_hist[[length(proc_hist)]]@paramBasic Alignment Plot

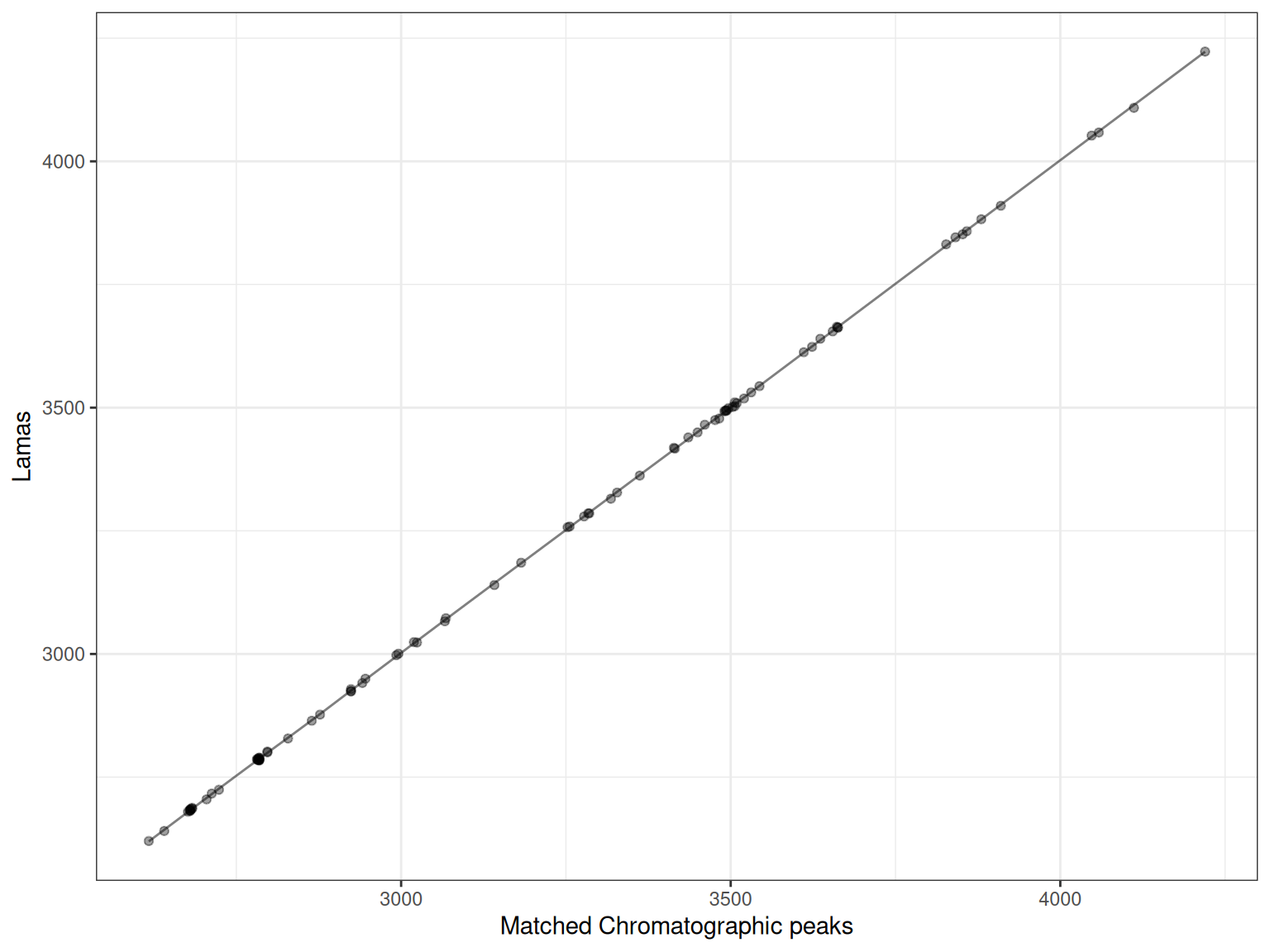

Each plot shows:
- Points: Matched peaks between the sample and reference
- Line: The fitted retention time correction model
# Plot alignment for first sample
p <- gplot(lama_result, index = 1)
p
The x-axis shows the observed retention times in the sample, while the y-axis shows the reference (or “Lama”) retention times. The fitted line shows how retention times should be adjusted.

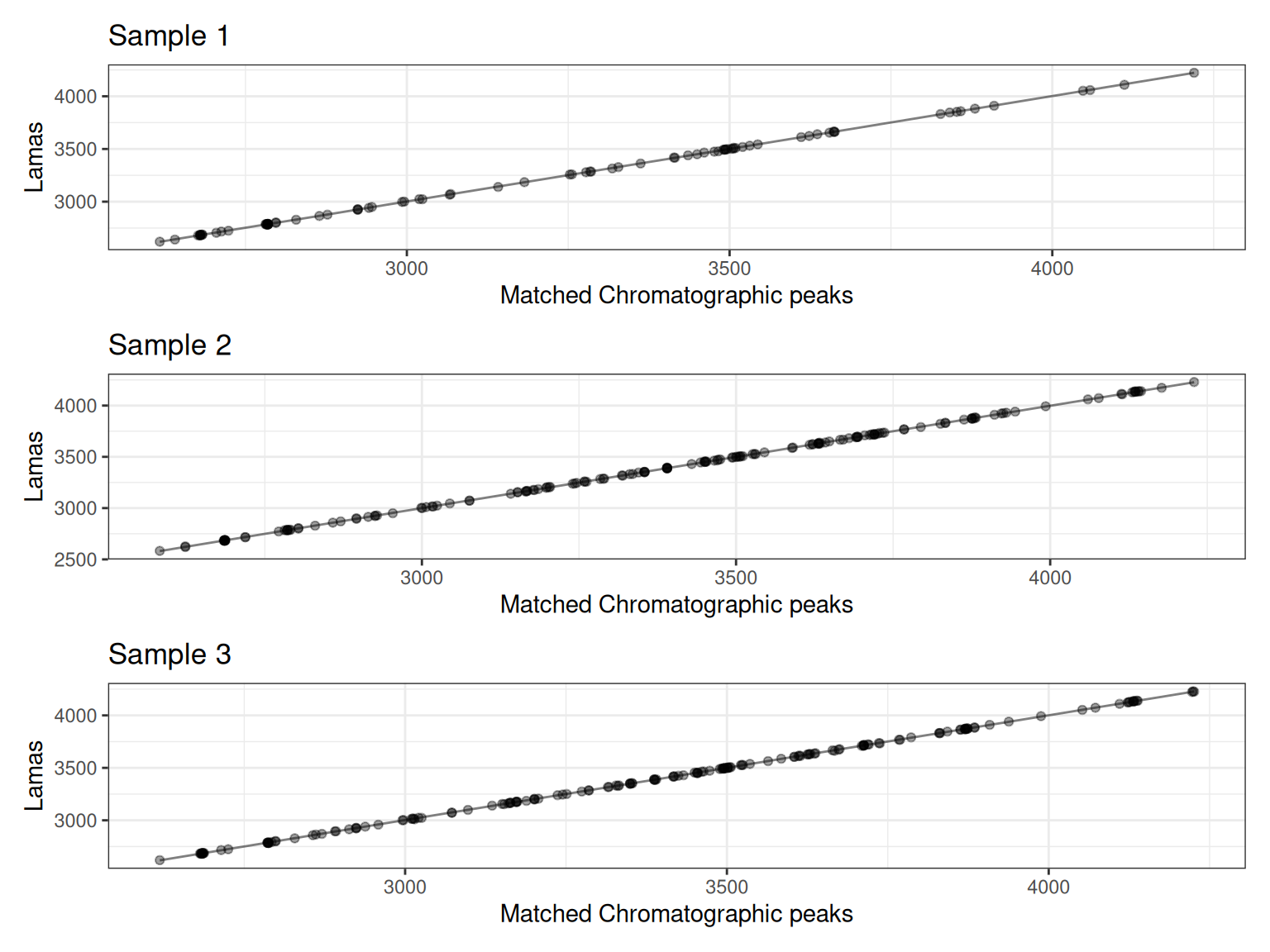

Multiple Samples
# Create plots for first 3 samples
p1 <- gplot(lama_result, index = 1) + ggtitle("Sample 1")
p2 <- gplot(lama_result, index = 2) + ggtitle("Sample 2")
p3 <- gplot(lama_result, index = 3) + ggtitle("Sample 3")
# Display plots
library(patchwork)
p1 / p2 / p3
The plots show how well the filtered landmark features align between samples. Since we filtered to features present in at least 80% of samples, these landmarks represent robust, high-quality features suitable for modeling retention time shifts.
Customization

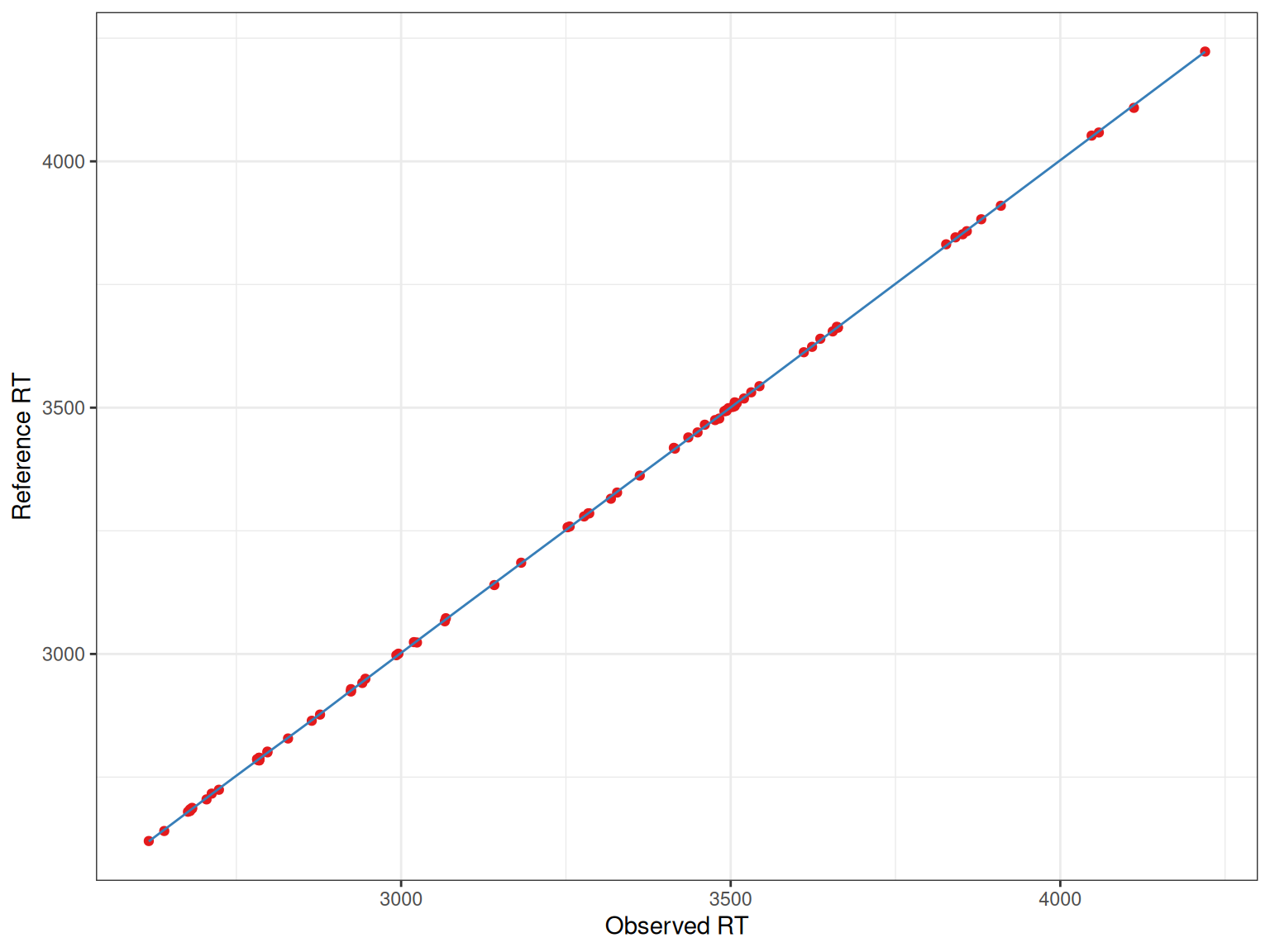

Custom Colors

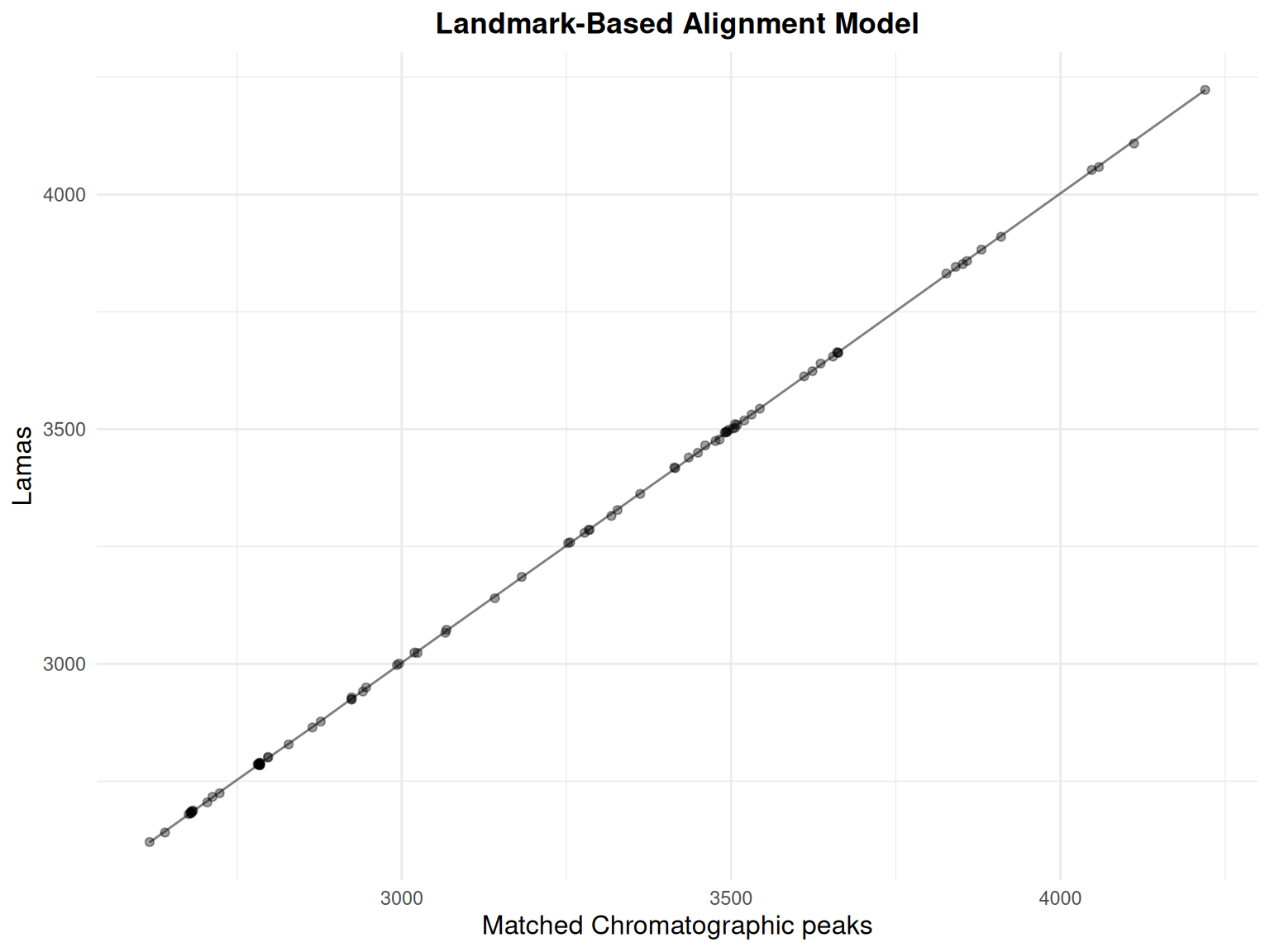

With ggplot2 Enhancements
gplot(lama_result, index = 1) +
ggtitle("Landmark-Based Alignment Model") +
theme_minimal() +
theme(
plot.title = element_text(hjust = 0.5, face = "bold"),
axis.title = element_text(size = 12)
)
Interactive
Interpretation
Good Alignment
A good alignment shows:
- Many matched points across the RT range
- Smooth fitted line (not too wiggly)
- Points closely following the fitted line
- Few outliers
Potential Issues
Watch for:
- Few matched points: May indicate poor peak grouping or too strict tolerance
- Non-smooth fit: Could indicate overfitting or poor parameter choice
- Many outliers: May suggest RT shifts that are too complex for the model
- Gaps in coverage: Some RT regions may not be well-represented
Comparing with Overall Alignment

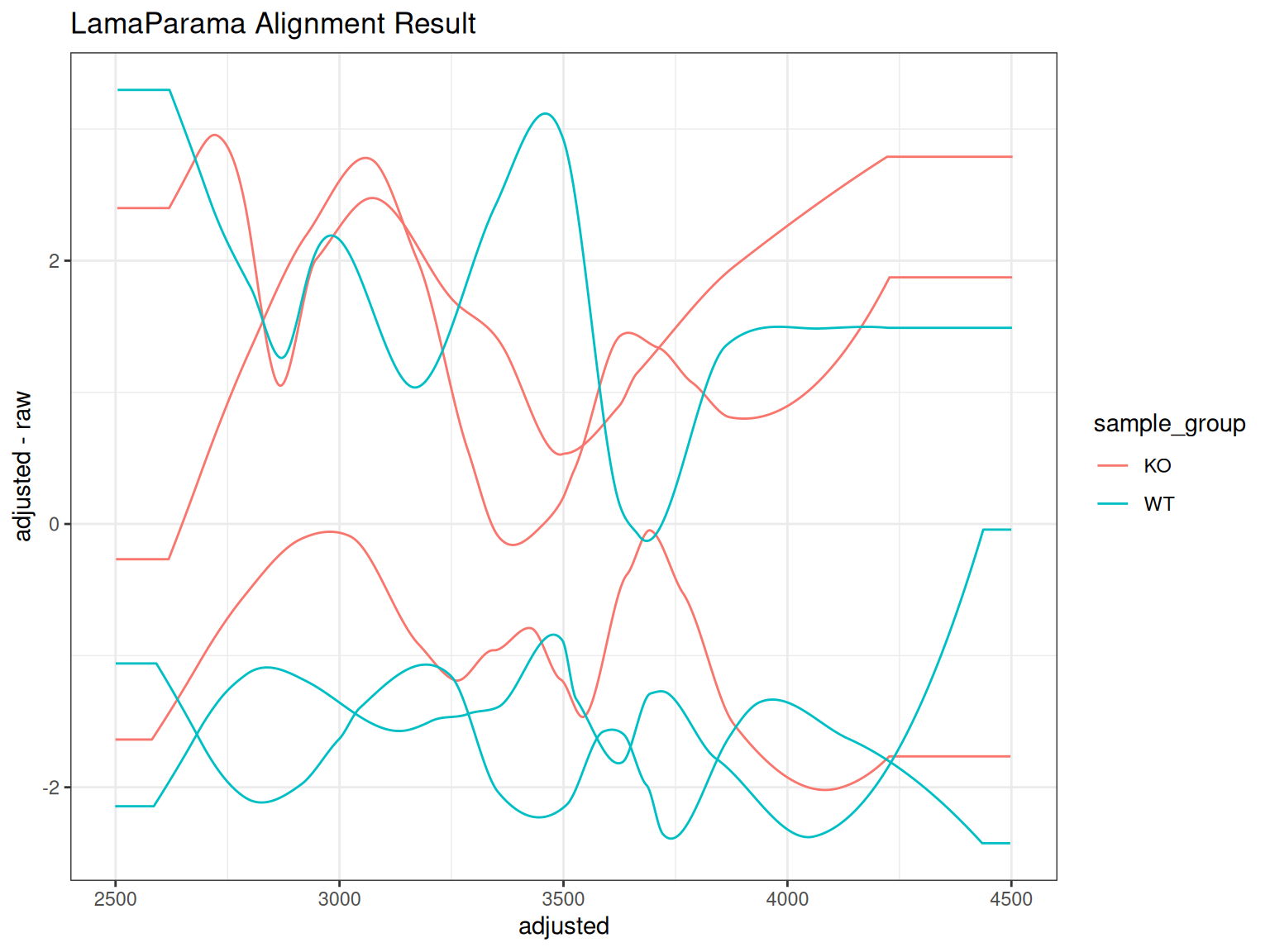

You can use gplotAdjustedRtime() to visualize the overall LamaParama alignment result:
gplotAdjustedRtime(xdata_lama, color_by = sample_group) +
ggtitle("LamaParama Alignment Result")

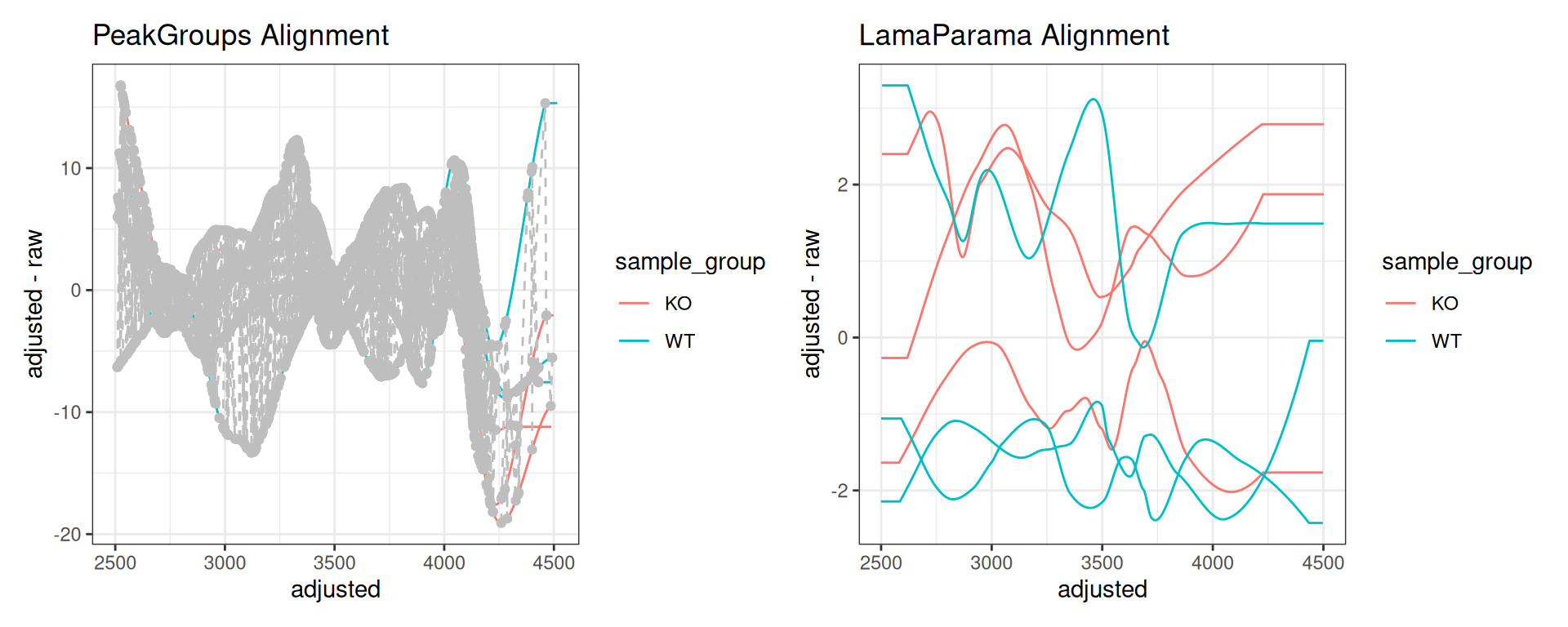

Comparing Alignment Methods
Create side-by-side comparisons of different alignment approaches:
# PeakGroups alignment
p_pg <- gplotAdjustedRtime(xdata, color_by = sample_group) +
ggtitle("PeakGroups Alignment")
# LamaParama alignment
p_lama <- gplotAdjustedRtime(xdata_lama, color_by = sample_group) +
ggtitle("LamaParama Alignment")
p_pg | p_lama
Summary
Use Cases
- Quality control: Verify alignment quality across samples
- Method comparison: Compare PeakGroups, Obiwarp, LamaParama
- Parameter optimization: Tune alignment parameters
- Troubleshooting: Identify samples with problematic alignment
Next Steps
After aligning retention times, proceed to:
→ Step 5: Feature Grouping - Group features (isotopes, adducts)
Comparison with Original xcms

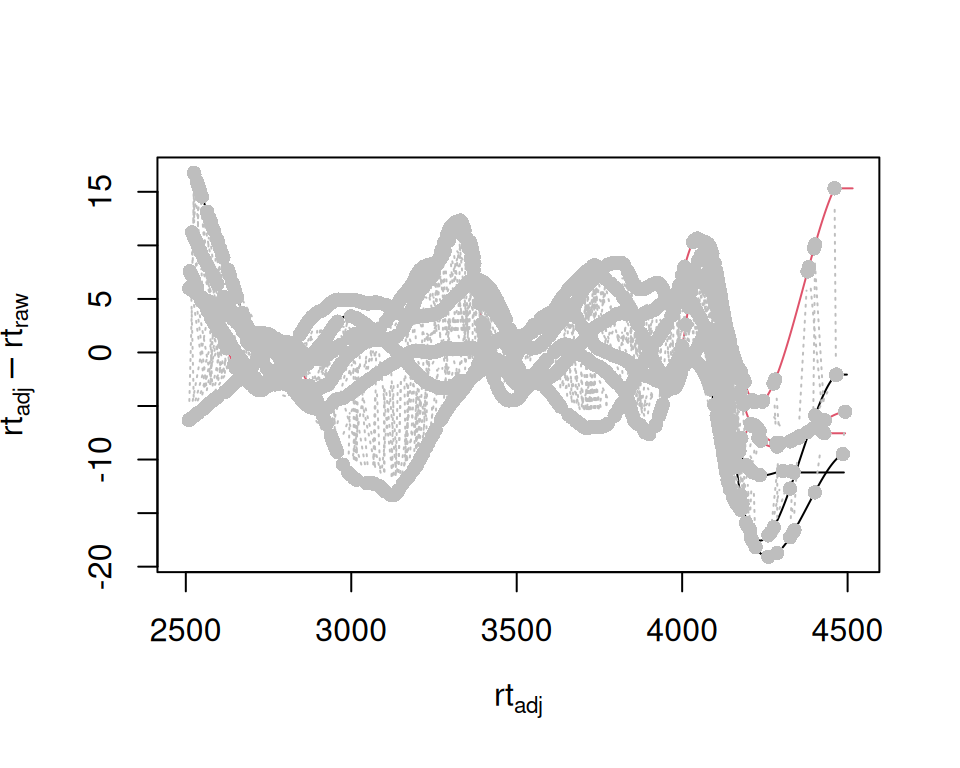

Original xcms
sample_data <- sampleData(xdata)
plotAdjustedRtime(
xdata,
col = as.factor(sample_data$sample_group),
peakGroupsCol = "grey"
)
xcmsVis ggplot2
gplotAdjustedRtime(xdata, color_by = sample_group)

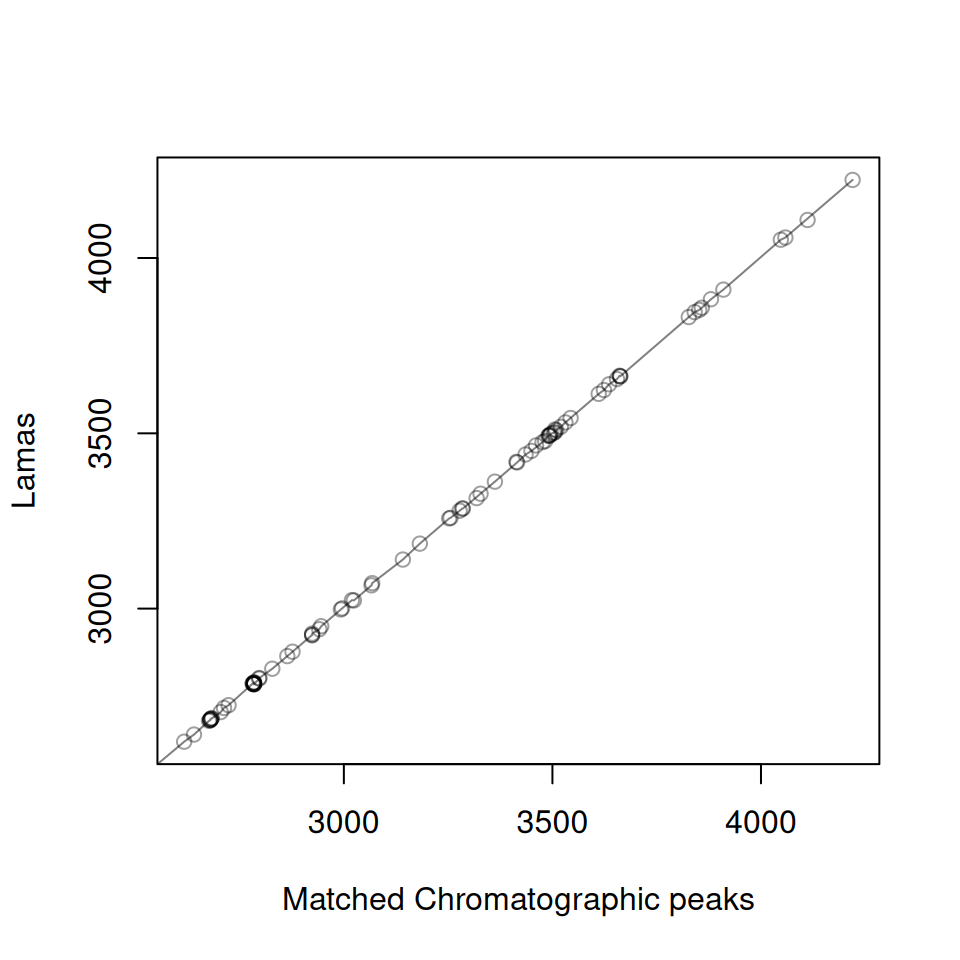

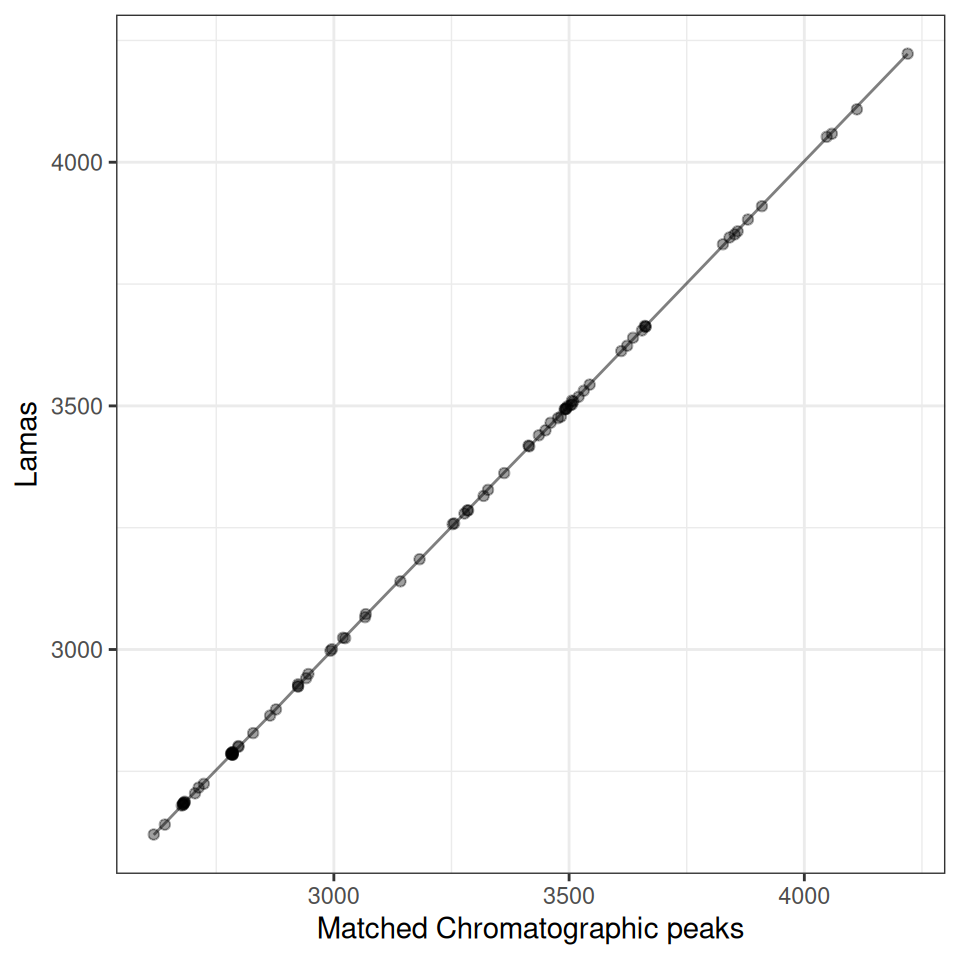

gplot(LamaParama) vs plot(LamaParama)
